Components [12/2019 - 10/2022]

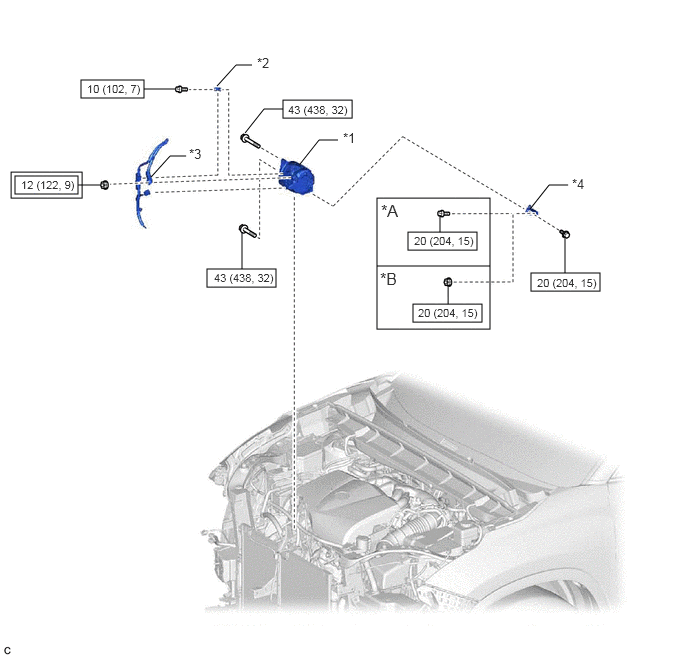

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | GENERATOR ASSEMBLY | *2 | WIRE HARNESS CLAMP BRACKET |
| *3 | TERMINAL CAP | *4 | NO. 1 GENERATOR BRACKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

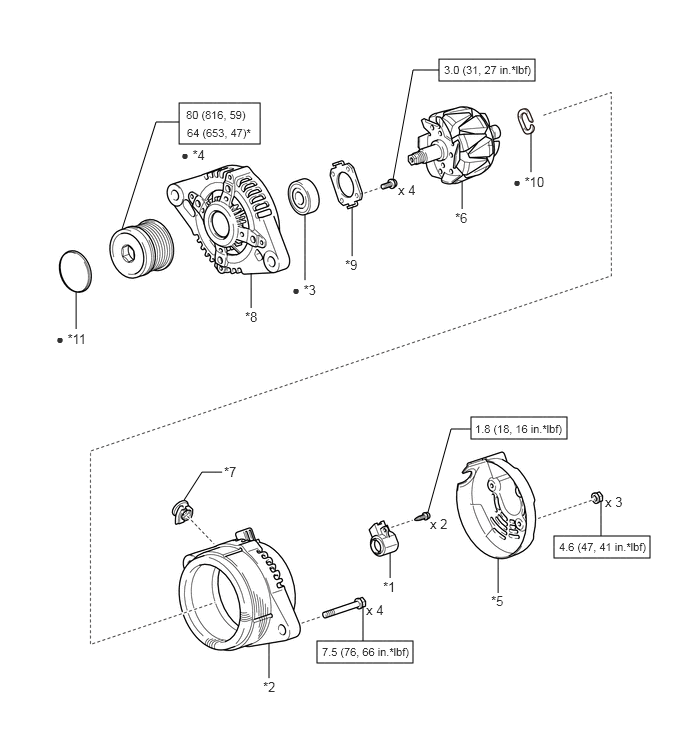

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY WITH CLUTCH |
| *5 | GENERATOR REAR END COVER | *6 | GENERATOR ROTOR ASSEMBLY |
| *7 | GENERATOR TERMINAL INSULATOR | *8 | GENERATOR DRIVE END FRAME |
| *9 | RETAINER PLATE | *10 | WASHER |
| *11 | GENERATOR PULLEY CAP | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
| • | Non-reusable part | - | - |
