Parts Location [11/2023 - ]: Illustration

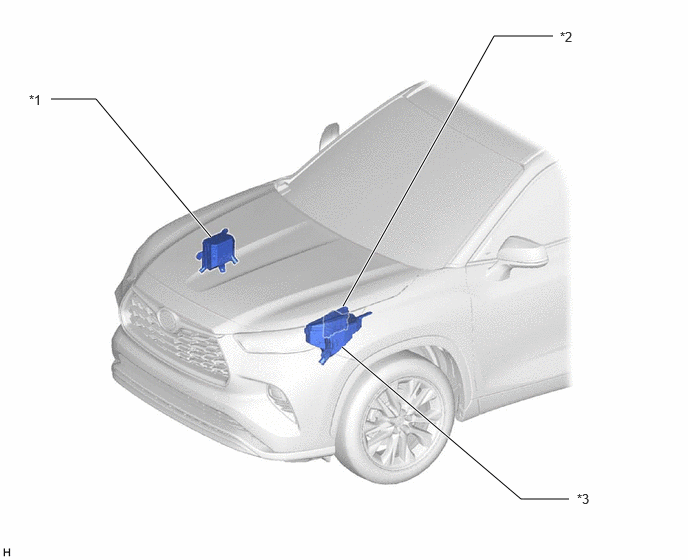

GTY1179760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 ENGINE ROOM JUNCTION BLOCK ASSEMBLY
- ECU-IGP NO. 3 FUSE		 *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY
- INV RELAY
- INV FUSE		 - -

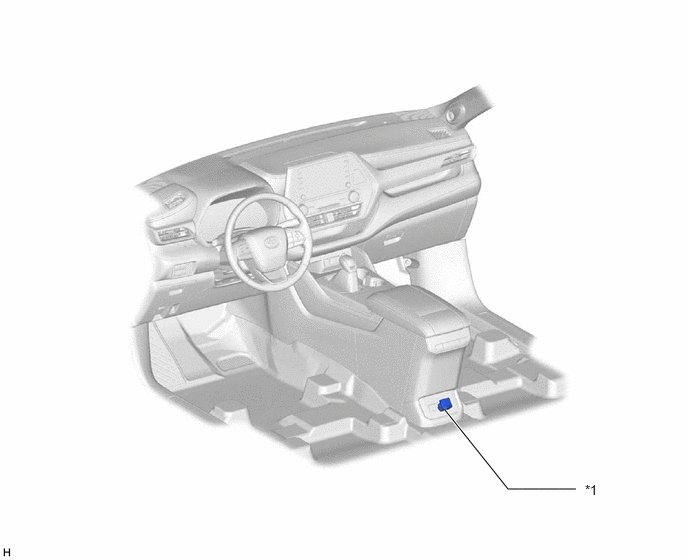

GTY1179863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 3 POWER OUTLET SOCKET ASSEMBLY - -

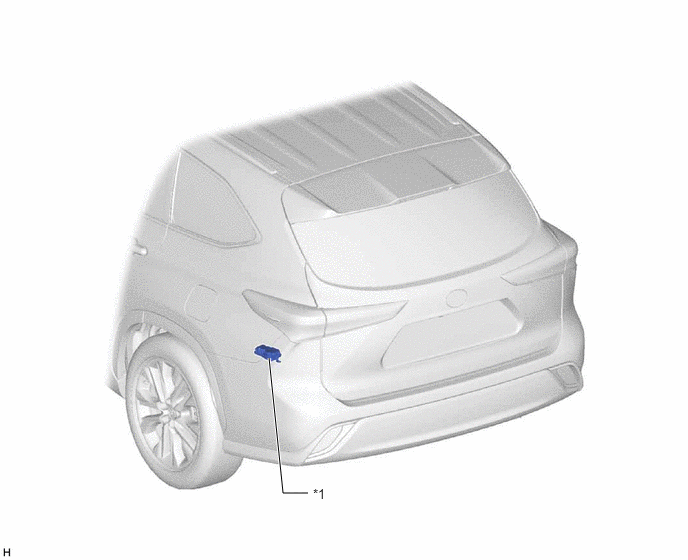

GTY875791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 VOLTAGE INVERTER ASSEMBLY - -
