Components [09/2020 - 10/2022]

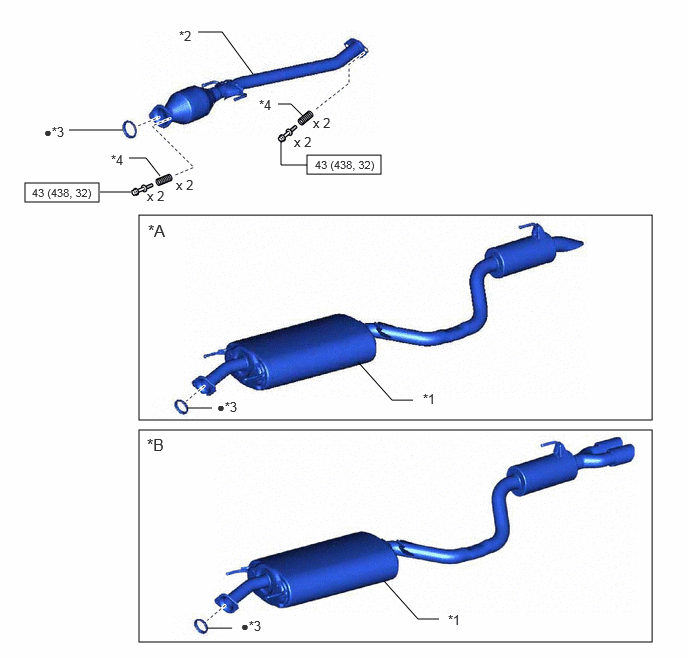

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications [09/2020 - 10/2022] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | GASKET | *4 | COMPRESSION SPRING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 2: Propeller Shaft Assembly Replacement Components With Torque Specifications [09/2020 - 10/2022] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE SERVICE COVER ASSEMBLY | *2 | REAR MAIN MUFFLER HEAT INSULATOR SUB-ASSEMBLY |
| *3 | NO. 1 EXHAUST PIPE SUPPORT BRACKET | *4 | NO. 3 EXHAUST PIPE SUPPORT BRACKET |
| *5 | NO. 4 EXHAUST PIPE SUPPORT BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

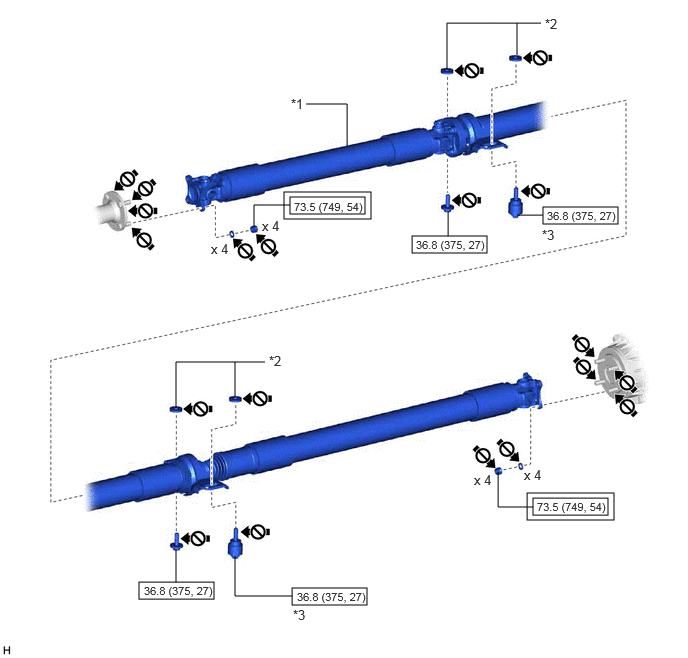

Fig 3: Propeller Shaft Assembly Replacement Components With Torque Specifications [09/2020 - 10/2022] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY | *2 | CENTER NO. 2 SUPPORT BEARING WASHER |
| *3 | CENTER SUPPORT BEARING DAMPER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
|
Do not apply lubricants | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | PROPELLER INTERMEDIATE SHAFT ASSEMBLY | *2 | REAR PROPELLER SHAFT ASSEMBLY |
| *3 | UNIVERSAL BOOT KIT | *4 | CENTER SUPPORT BEARING |
| *5 | NO. 1 DUST DEFLECTOR | *6 | FLANGE |
| *7 | SMALL DIAMETER PROPELLER SHAFT BOOT CLAMP | *8 | PROPELLER SHAFT BOOT |
| *9 | LARGE DIAMETER PROPELLER SHAFT BOOT CLAMP | *10 | BALL CAGE |
| *11 | INNER RACE | *12 | BALL |
| *13 | PROPELLER SHAFT SNAP RING | - | - |
| • | Non-reusable part | - | - |
