Components [12/2019 - ]

Fig 1: Brake Actuator (For HV Model) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL VENTILATOR PANEL SUB-ASSEMBLY	*2	FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH
*3	FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH	*4	FRONT FENDER SPLASH SHIELD SEAL FRONT RH
*5	FRONT FENDER SPLASH SHIELD SEAL FRONT LH	*6	FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH
*7	FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

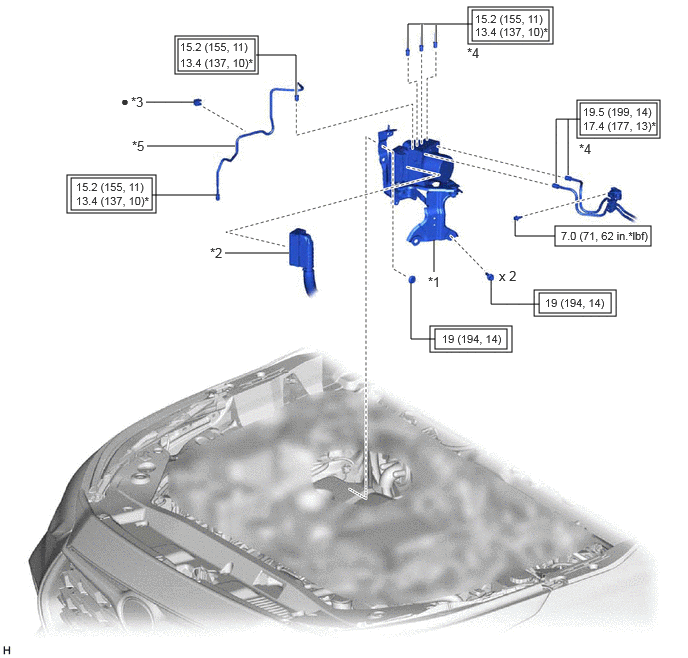

Fig 2: Brake Actuator (For HV Model) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE ACTUATOR WITH BRACKET	*2	CONNECTOR
*3	BRAKE TUBE CLAMP	*4	BRAKE LINE
*5	FRONT BRAKE TUBE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
*	For use with a union nut wrench	•	Non-reusable part

Fig 3: Brake Actuator (For HV Model) Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	BRAKE ACTUATOR ASSEMBLY	*2	BRAKE ACTUATOR BRACKET CUSHION
*3	NO. 2 BRAKE ACTUATOR CASE COLLAR	*4	BRAKE ACTUATOR BRACKET ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
