Components [10/2022 - ]
Fig 1: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER APRON SEAL RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHIELD SEAL FRONT RH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

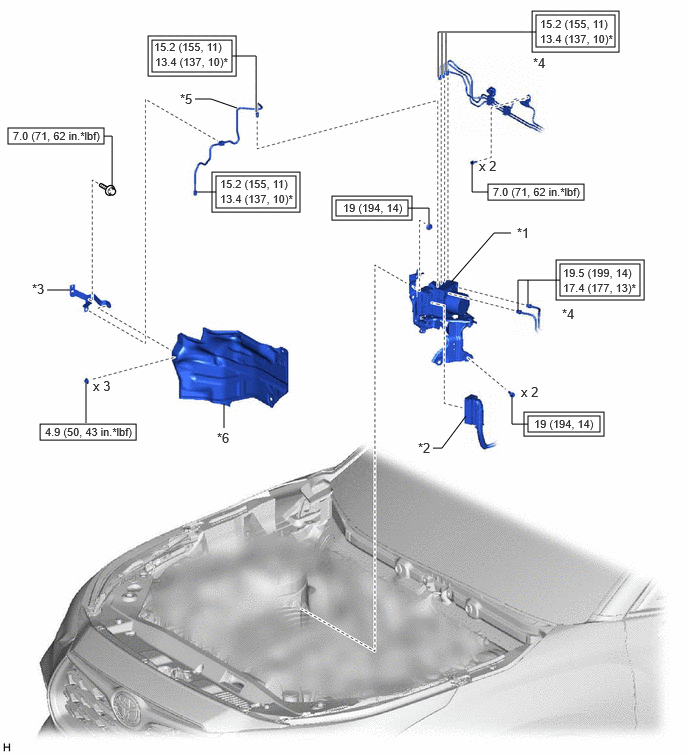

Fig 3: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR WITH BRACKET | *2 | CONNECTOR |
| *3 | BRAKE TUBE BRACKET | *4 | BRAKE LINE |
| *5 | FRONT BRAKE TUBE | *6 | DASH PANEL HEAT INSULATOR |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| * | For use with a union nut wrench | - | - |
Fig 4: Brake Actuator (For Gasoline Model) Replacement Components With Torque Specifications [10/2022 - ] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE ACTUATOR BRACKET CUSHION |
| *3 | NO. 2 BRAKE ACTUATOR CASE COLLAR | *4 | BRAKE ACTUATOR BRACKET ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
