Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD

    for A25A-FXS: Refer to PROCEDURE - Step 7

    for 2GR-FKS: Refer to PROCEDURE - Step 8 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - 10/2022]

  3. SEPARATE FRONT FENDER LINER

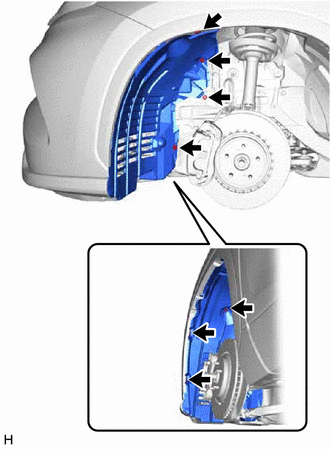

    1. Remove the screw and 6 clips to separate the front fender liner.
      GTY912268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SPEED SENSOR
    1. Turn back the front fender liner.

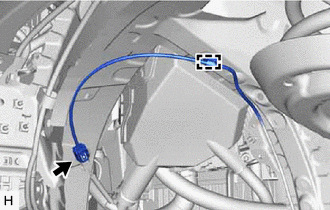

    2. Disconnect the front speed sensor connector.
      GTY912264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.

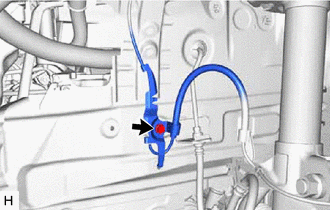

    4. Remove the bolt and separate the sensor clamp.
      GTY912266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

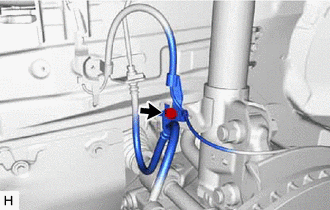

    5. Remove the bolt and separate the front flexible hose and sensor clamp.
      GTY912263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

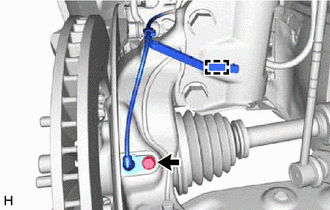

    6. Disengage the clamp to separate the sensor clamp.
      GTY942519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and front speed sensor from the steering knuckle.
      NOTE:
      • Keep the tip of the front speed sensor and installation hole free of foreign matter.
      • Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
