REAR SPEED SENSOR (for AWD)
>>
Components [12/2019 - ]
Components [12/2019 - ]

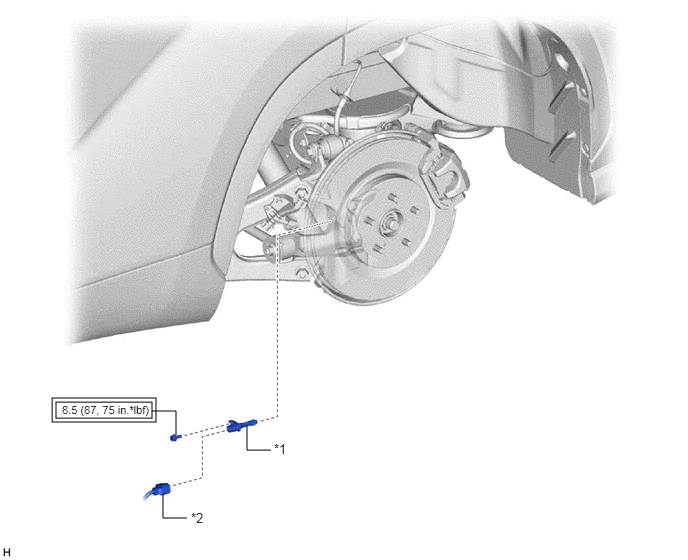

Fig 1: Rear Speed Sensor (For AWD) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
REAR SKID CONTROL SENSOR
*2
NO. 2 PARKING BRAKE WIRE ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)
-
-
