Removal [12/2019 - ]: Procedure

Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

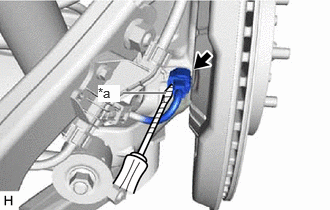

1. Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear skid control sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
   • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
   • Be careful not to damage the rear skid control sensor or connector cover.

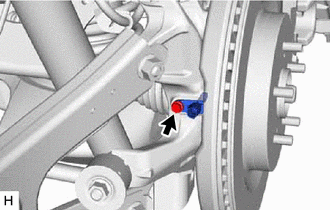

2. Remove the bolt and the rear skid control sensor from the rear axle carrier sub-assembly.
   NOTE:

   • Keep the tip of the rear skid control sensor and installation hole free of foreign matter.
   • Do not rotate or apply excessive force to the rear skid control sensor when removing it from the rear axle carrier sub-assembly. Rotating or applying excessive force may result in damage to the rear skid control sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
