Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE STEERING SENSOR
    NOTE:
    • Remove the steering sensor from the spiral cable sub-assembly only when replacing the spiral cable sub-assembly or the steering sensor.
    • Removing the steering sensor from the spiral cable sub-assembly without using a lock pin may result in the center position of the steering sensor becoming misaligned. Therefore, make sure to use the lock pin provided with a new spiral cable sub-assembly when removing the steering sensor from the spiral cable sub-assembly.
    • When replacing the spiral cable sub-assembly:

      Refer to PROCEDURE - Step 6

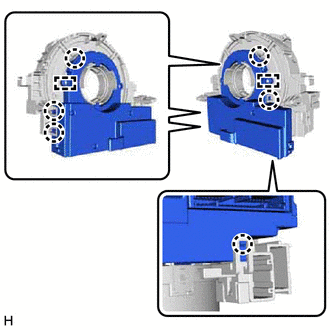

    1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.
      GTY766358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the claws and pins of the spiral cable sub-assembly.
