Components [12/2019 - ]

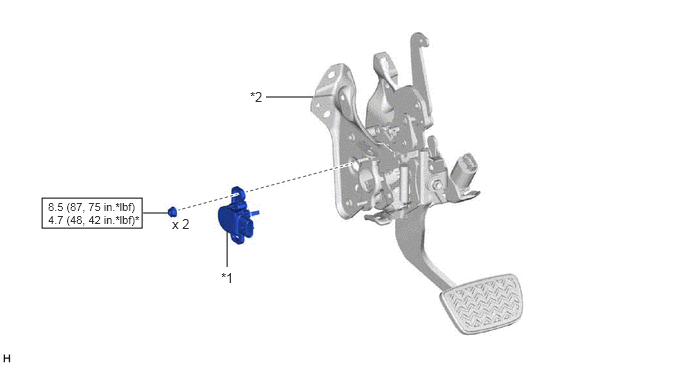

Fig 1: Brake Pedal Stroke Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE PEDAL STROKE SENSOR ASSEMBLY	*2	BRAKE PEDAL SUPPORT ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
