Removal [10/2022 - 11/2023]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2022 - 11/2023]

  2. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
    1. Disconnect the connector from the brake pedal stroke sensor assembly.

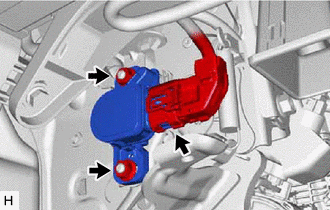

      GTY912246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.
      NOTE:
      • Do not drop the brake pedal stroke sensor assembly.
      • If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
