Installation [12/2019 - 11/2023]: Procedure

INSPECT AND ADJUST BRAKE PEDAL HEIGHT
Refer to ADJUSTMENT [12/2019 - 10/2022] , or refer to ADJUSTMENT [10/2022 - ]

INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY

NOTE:

Do not drop the brake pedal stroke sensor assembly.
If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.

When installing a new brake pedal stroke sensor assembly:

NOTE:

Do not break the brake pedal stroke sensor assembly lever set pin before installing the brake pedal stroke sensor assembly with the 2 nuts.

Install a new brake pedal stroke sensor assembly to the brake pedal support assembly with the 2 nuts.

NOTE:

Engage the brake pedal stroke sensor assembly lever with the brake pedal groove.
Check that there is no foreign matter attached to the contact surface of the brake pedal stroke sensor assembly.
Check that the tip of the brake pedal stroke sensor assembly lever is protruding from the brake pedal groove.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

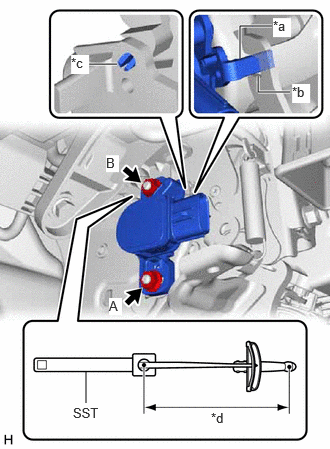

*a	Brake Pedal Stroke Sensor Assembly Lever
*b	Brake Pedal Groove
*c	Brake Pedal Stroke Sensor Assembly Lever Set Pin
*d	Torque Wrench Fulcrum Length

Fully tighten the nut (A).
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
Using SST, fully tighten the nut (B).
- SST: 09961-00950
Specified tightening torque

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
  Refer to PRECAUTION [12/2019 - 11/2023]
- When using SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 185 mm (7.28 in.)):
  4.7 N.m (48 kgf/cm, 42 in.lbf)
Connect the connector.
Firmly depress the brake pedal to break the brake pedal stroke sensor assembly lever set pin.
Remove the broken lever set pin.

When reusing the brake pedal stroke sensor assembly:

Install the brake pedal stroke sensor assembly to the brake pedal support assembly and temporarily tighten the 2 nuts.

NOTE:

Engage the brake pedal stroke sensor assembly lever with the brake pedal groove.
Check that there is no foreign matter attached to the contact surface of the brake pedal stroke sensor assembly.
Check that the tip of the brake pedal stroke sensor assembly lever is protruding from the brake pedal groove.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

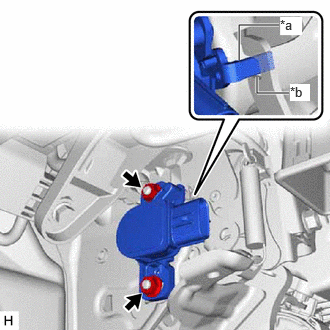

*a	Brake Pedal Stroke Sensor Assembly Lever
*b	Brake Pedal Groove

Connect the connector.

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022] , or refer to INITIALIZATION [10/2022 - 11/2023]

ADJUST BRAKE PEDAL STROKE SENSOR ASSEMBLY

NOTE:

When the brake pedal stroke sensor assembly is being reused, perform the following procedure to adjust it.
Do not depress the brake pedal after turning the ignition switch to ON.

Read the stroke sensor value in the Data List, and turn the brake pedal stroke sensor assembly slowly to the right or left to adjust the output voltage so that it is within the following range.

Chassis > Brake Booster > Data List

Tester Display
Stroke Sensor

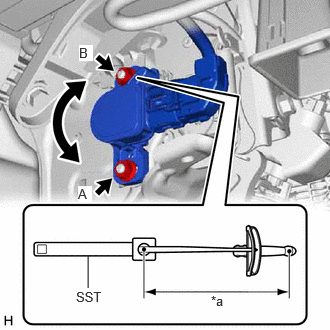

*a	Torque Wrench Fulcrum Length

Standard Voltage (without the brake pedal depressed)

0.8 to 1.2 V

Fully tighten the nut (A).
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
Using SST, fully tighten the nut (B).
- SST: 09961-00950
Specified tightening torque

Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
  Refer to PRECAUTION [12/2019 - 11/2023]
- When using SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 185 mm (7.28 in.)):
  4.7 N.m (48 kgf/cm, 42 in.lbf)

PERFORM INITIALIZATION AND CALIBRATION
for Electronically Controlled Brake System: Refer to UTILITY [12/2019 - 11/2023]
CHECK AND CLEAR DTC
Refer to DTC CHECK / CLEAR [12/2019 - ]
