Installation [12/2019 - ]: Procedure

  1. INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING

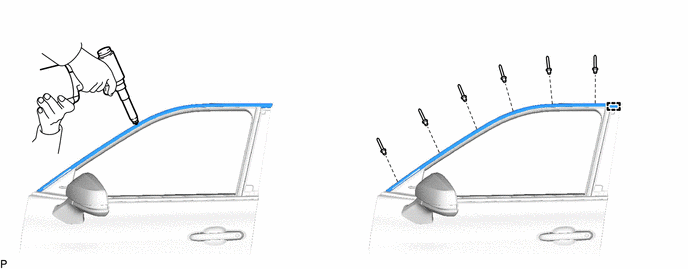

    1. Engage the guide to temporarily install the front door upper window frame moulding to the door frame.
      GTY907589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an air riveter or hand riveter with a nose piece, install the front door upper window frame moulding with 6 new rivets.

      HINT:

      If the mandrel of the rivet does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

      NOTE:
      • Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
        GTY438242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Riveter
        *b Mandrel
        *c Incorrect
      • Confirm that the rivets are seated properly against the moulding.
        GTY436344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Riveter
        *b Incorrect
      • Do not tilt the riveter when installing the rivet to the moulding.
      • Do not leave any space between the rivet head and moulding.
      • Do not leave any space between the moulding and door frame. Firmly hold the 2 items together while installing the rivet.
        GTY432402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Riveter
        *b Incorrect
  2. INSTALL FRONT DOOR WINDOW FRAME MOULDING

    HINT:

    When installing a new front door window frame moulding, heat the vehicle body using a heat light.

    Heating Temperature

    Item Temperature
    Vehicle Body 20 to 30 °C (68 to 86 °F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the vehicle body excessively.

    1. Clean the vehicle body surface.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove any double-sided tape from the vehicle body.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new front door window frame moulding.
      1. Using a heat light, heat the vehicle body surface.
      2. Remove the release paper from the front door window frame moulding.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Engage the guide, clip and attach the double-sided tape and caulking sponge to install the front door window frame moulding.

        HINT:

        Press the front door window frame moulding firmly to install it.

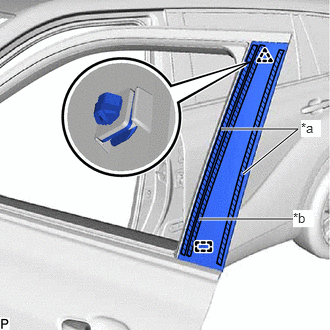

        GTY862429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Double-sided Tape
        *b Caulking Sponge
  3. CONNECT FRONT DOOR WEATHERSTRIP
    1. Engage the 4 clips and connect the front door weatherstrip.
  4. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - ]
