Components [12/2019 - ]

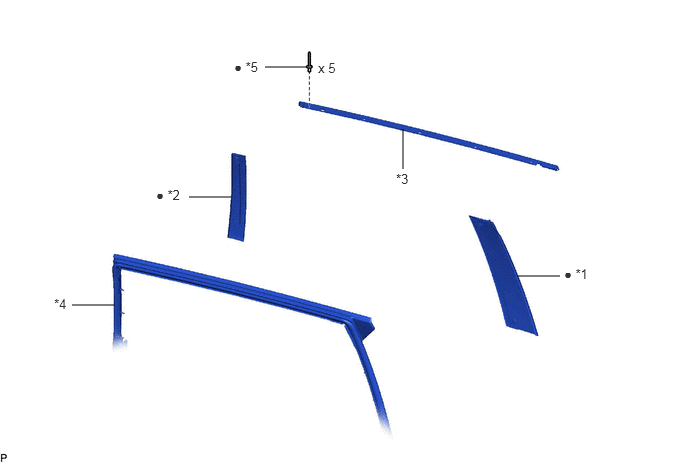

Fig 1: Rear Door Window Frame Moulding Replacement Components
GTY934571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DOOR FRONT WINDOW FRAME MOULDING *2 REAR DOOR REAR WINDOW FRAME MOULDING
*3 REAR DOOR UPPER WINDOW FRAME MOULDING *4 REAR DOOR WEATHERSTRIP
*5 RIVET - -
• Non-reusable part - -
