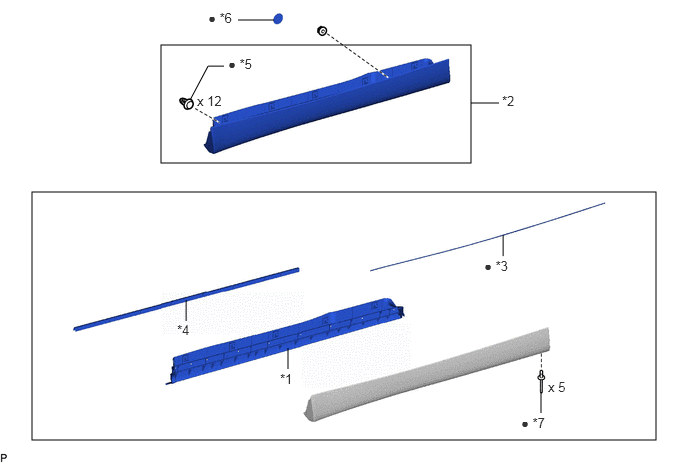

Components [12/2019 - 09/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT DOOR LOWER OUTSIDE MOULDING | *2 | FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY |
| *3 | FRONT DOOR UPPER OUTSIDE MOULDING PAD | *4 | NO. 2 FRONT DOOR WEATHERSTRIP |
| *5 | CLIP | *6 | PLUG PLATE |
| *7 | RIVET | - | - |
| • | Non-reusable part | - | - |
