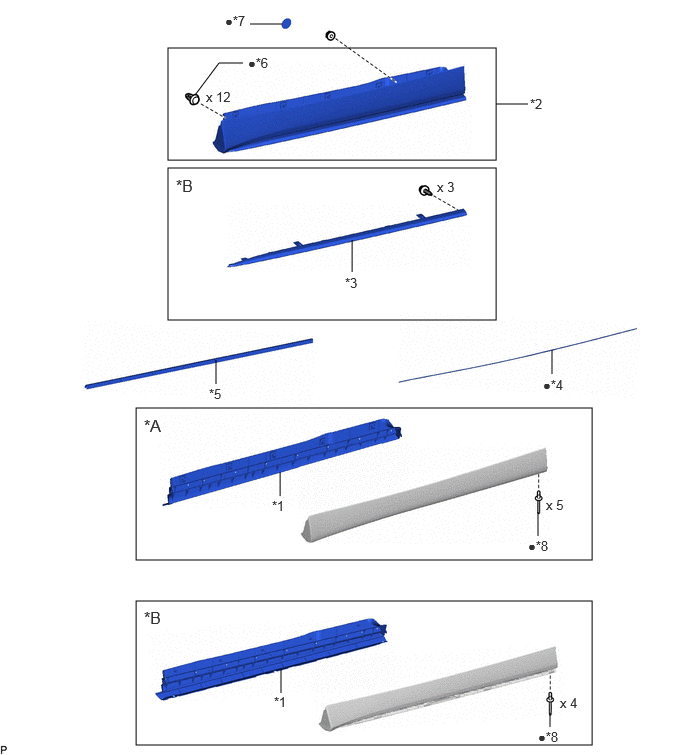

Components [11/2024 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | FRONT DOOR LOWER OUTSIDE MOULDING | *2 | FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY |
| *3 | FRONT DOOR REAR OUTSIDE MOULDING | *4 | FRONT DOOR UPPER OUTSIDE MOULDING PAD |
| *5 | NO. 2 FRONT DOOR WEATHERSTRIP | *6 | CLIP |
| *7 | PLUG PLATE | *8 | RIVET |
| • | Non-reusable part | - | - |
