Components [12/2019 - 09/2020]

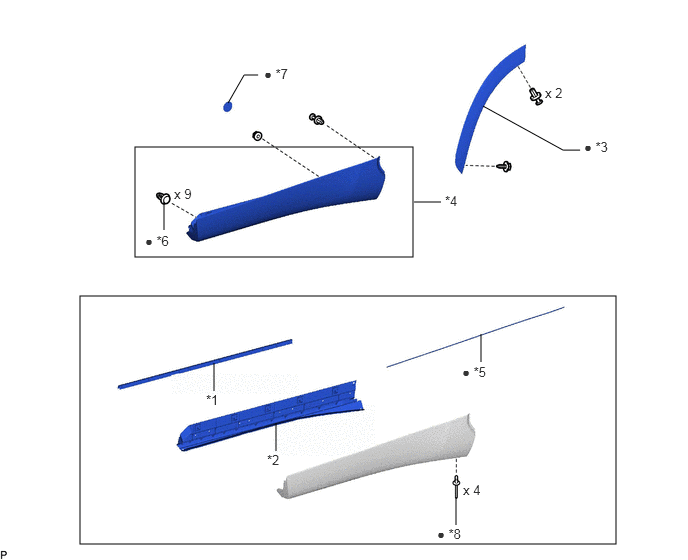

Fig 1: Rear Door Outside Moulding Replacement Components [12/2019 - 09/2020]
GTY911610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 4 REAR DOOR WEATHERSTRIP *2 REAR DOOR LOWER OUTSIDE MOULDING
*3 REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY *4 REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY
*5 REAR DOOR UPPER OUTSIDE MOULDING PAD *6 CLIP
*7 PLUG PLATE *8 RIVET
Non-reusable part - -
