Removal [12/2019 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE PAD
    1. Remove the screw.

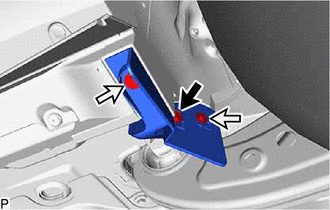

      GTY904850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the 2 clips and rear wheel house pad.
