Disassembly [12/2019 - 10/2021]: Procedure

  1. REMOVE MOTOR COVER

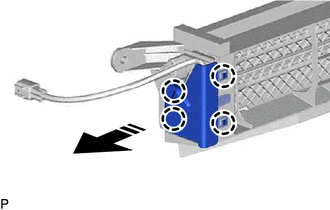

    1. Disengage the 4 claws to remove the motor cover as shown in the illustration.
      GTY916009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE SWING GRILLE ACTUATOR ASSEMBLY
    1. Disconnect the connector.
      GTY897682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

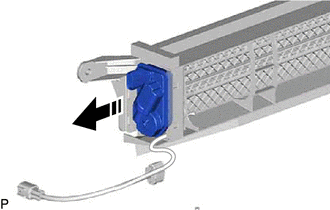

    2. Remove the swing grille actuator assembly as shown in the illustration.
      GTY840660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 2 RADIATOR GRILLE SEAL
    1. Remove the No. 2 radiator grille seal.
      GTY897643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  4. REMOVE NO. 1 RADIATOR GRILLE SEAL
    1. Remove the No. 1 radiator grille seal.
      GTY897642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 3 RADIATOR GRILLE SEAL
    1. Disengage the 3 claws to remove the No. 3 radiator grille seal.
      GTY939273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
