Components [12/2019 - ]

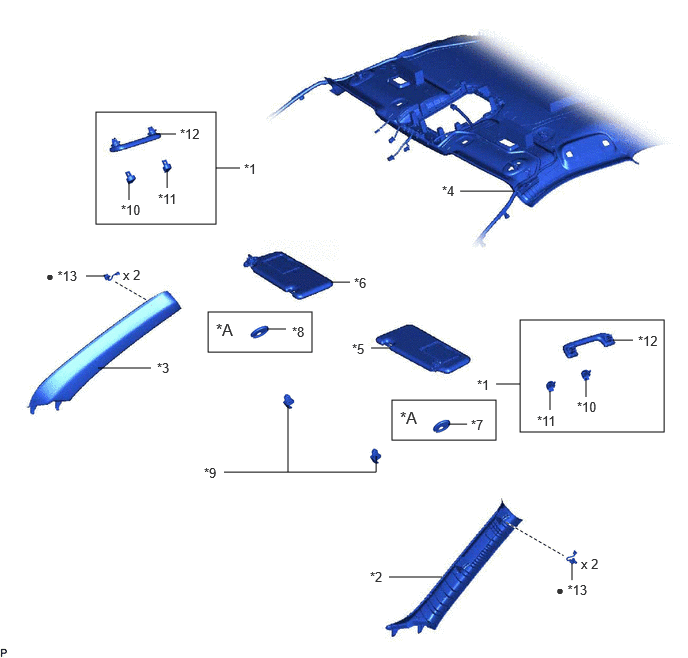

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Cover | - | - |
| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | FRONT PILLAR GARNISH ASSEMBLY LH |
| *3 | FRONT PILLAR GARNISH ASSEMBLY RH | *4 | ROOF HEADLINING ASSEMBLY |
| *5 | VISOR ASSEMBLY LH | *6 | VISOR ASSEMBLY RH |
| *7 | VISOR BRACKET COVER LH | *8 | VISOR BRACKET COVER RH |
| *9 | VISOR HOLDER | *10 | ASSIST GRIP COVER LH |
| *11 | ASSIST GRIP COVER RH | *12 | ASSIST GRIP |
| *13 | FRONT PILLAR GARNISH CLIP | - | - |
| • | Non-reusable part | - | - |

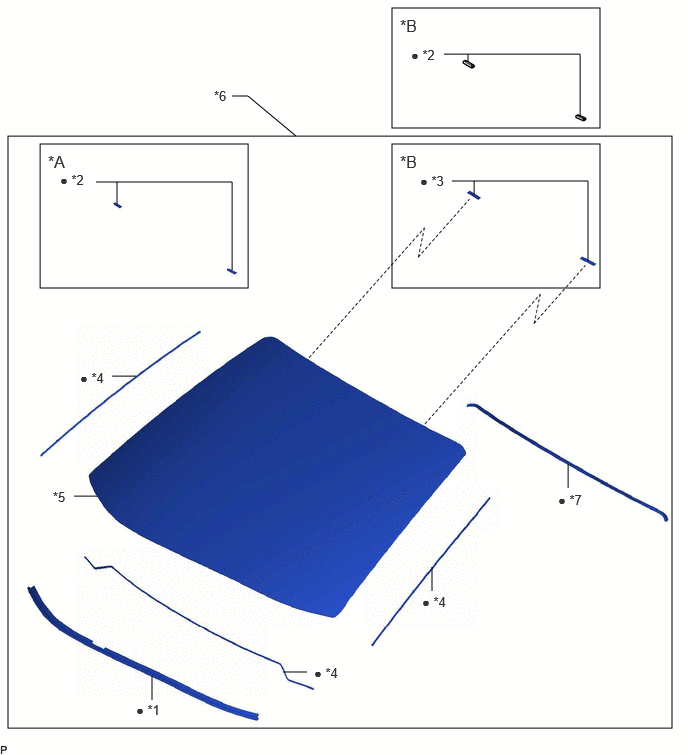

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 1-piece Type | *B | for 2-piece Type |
| *1 | FRONT WINDOW INNER CENTER MOULDING | *2 | NO. 1 WINDSHIELD GLASS STOPPER |
| *3 | NO. 2 WINDSHIELD GLASS STOPPER | *4 | WINDOW GLASS ADHESIVE DAM |
| *5 | WINDSHIELD GLASS | *6 | WINDSHIELD GLASS SUB-ASSEMBLY |
| *7 | WINDSHIELD OUTSIDE UPPER MOULDING | - | - |
| • | Non-reusable part | - | - |
