Removal [12/2019 - 10/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2021] , or refer to REMOVAL [10/2021 - 10/2022]

  3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 6 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 6 [10/2021 - 11/2023]

  4. REMOVE FRONT SEAT FRONT CUSHION SHIELD

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 7 [10/2021 - 11/2023]

  5. REMOVE FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 8 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 8 [10/2021 - 11/2023]

  6. REMOVE FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 9 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 9 [10/2021 - 11/2023]

  7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 16 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 14 [10/2021 - 11/2023]

  8. REMOVE FRONT SEAT HEADREST SUPPORT ASSEMBLY

    Refer to PROCEDURE - Step 17 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 15 [10/2021 - 11/2023]

  9. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 18 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 16 [10/2021 - 11/2023]

  10. REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

    Refer to PROCEDURE - Step 22 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 20 [10/2021 - 11/2023]

  11. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

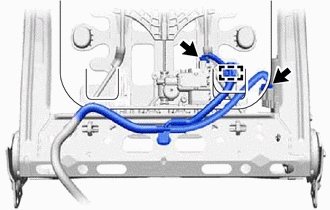

    1. Disconnect the 2 connectors.
      GTY853517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

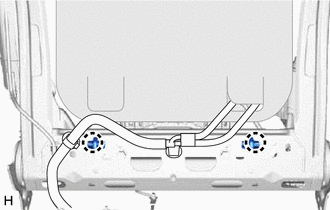

    3. Disengage the 2 claws to remove the 2 front No. 2 seatback edge protectors from the front seatback frame sub-assembly.
      GTY873137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

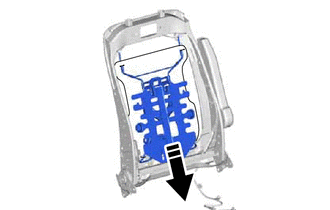

    4. Remove the lumbar support adjuster assembly from the front seatback frame sub-assembly as shown in the illustration.
      GTY941937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the seatback felt from the lumbar support adjuster assembly.
  12. REMOVE FRONT NO. 2 SEATBACK EDGE PROTECTOR

    Refer to PROCEDURE - Step 27 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 25 [10/2021 - 11/2023]
