Installation [12/2019 - ]: Procedure

  1. INSTALL FRONT NO. 2 SEATBACK EDGE PROTECTOR

    Refer to PROCEDURE - Step 21 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 19 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 19 [11/2023 - ]

  2. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY
    1. Install the seatback felt to the lumbar support adjuster assembly.

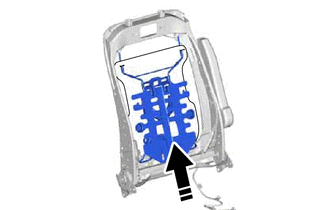

    2. Install the lumbar support adjuster assembly to the front seatback frame sub-assembly as shown in the illustration.
      GTY903802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the 2 claws to install the 2 front No. 2 seatback edge protectors to the front seatback frame sub-assembly.
      GTY873137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 2 connectors.
      GTY853517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the clamp.
  3. INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

    Refer to PROCEDURE - Step 26 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 24 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 24 [11/2023 - ]

  4. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 30 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 28 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 28 [11/2023 - ]

  5. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY

    Refer to PROCEDURE - Step 31 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 29 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 29 [11/2023 - ]

  6. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 32 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 30 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 30 [11/2023 - ]

  7. INSTALL FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 37 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 35 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 35 [11/2023 - ]

  8. INSTALL FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 38 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 36 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 36 [11/2023 - ]

  9. INSTALL FRONT SEAT FRONT CUSHION SHIELD

    Refer to PROCEDURE - Step 41 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 37 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 37 [11/2023 - ]

  10. CONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 42 [12/2019 - 10/2021] , or refer to PROCEDURE - Step 38 [10/2021 - 11/2023] , or refer to PROCEDURE - Step 38 [11/2023 - ]

  11. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
