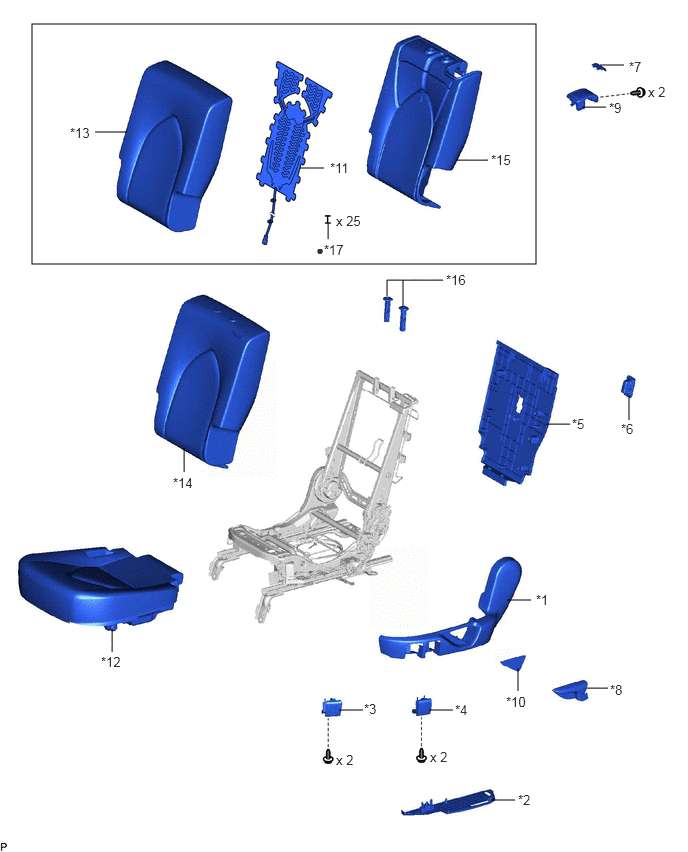

| *1 |
REAR SEAT CUSHION MOULDING LH |
*2 |
REAR SEAT CUSHION UNDER COVER LH |
| *3 |
REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH |
*4 |
REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH |
| *5 |
REAR SEATBACK BOARD SUB-ASSEMBLY LH |
*6 |
REAR SEATBACK COVER LH |
| *7 |
REAR SEATBACK LOCK STRIKER COVER LH |
*8 |
RECLINING ADJUSTER RELEASE HANDLE LH |
| *9 |
RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH |
*10 |
SEAT ADJUSTER COVER CAP LH |
| *11 |
SEAT HEATER ASSEMBLY |
*12 |
SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |
| *13 |
SEPARATE TYPE REAR SEATBACK COVER |
*14 |
SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *15 |
SEPARATE TYPE REAR SEATBACK PAD |
*16 |
REAR SEAT HEADREST SUPPORT |
| *17 |
TAG PIN |
- |
- |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
