Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

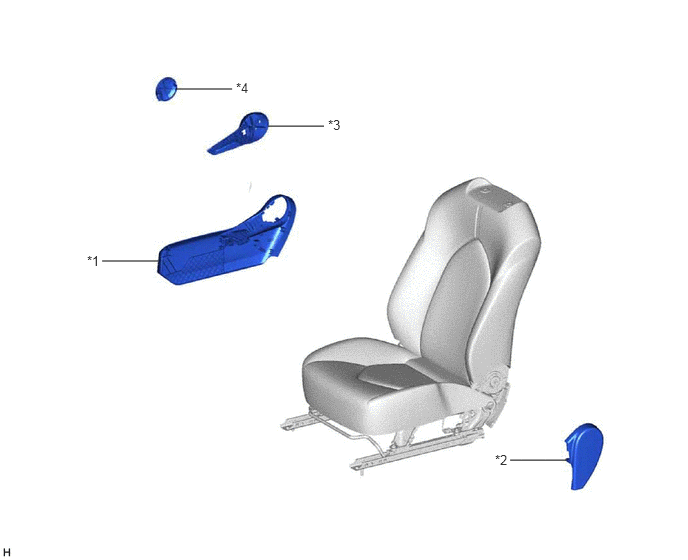

| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER CUSHION SHIELD |
| *3 | RECLINING ADJUSTER RELEASE HANDLE | *4 | RECLINING HINGE COVER |
Fig 2: Front Seat Cushion Heater (For Manual Seat) Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

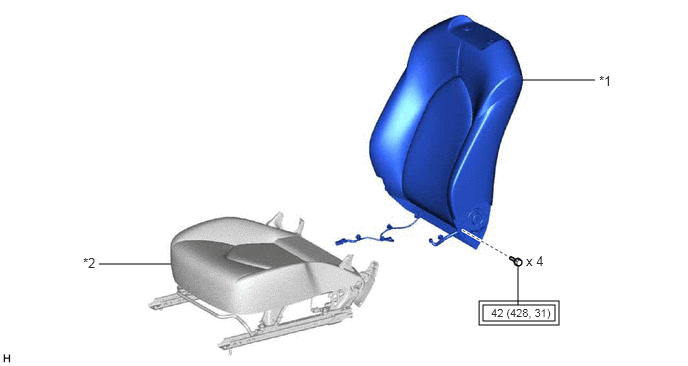

| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

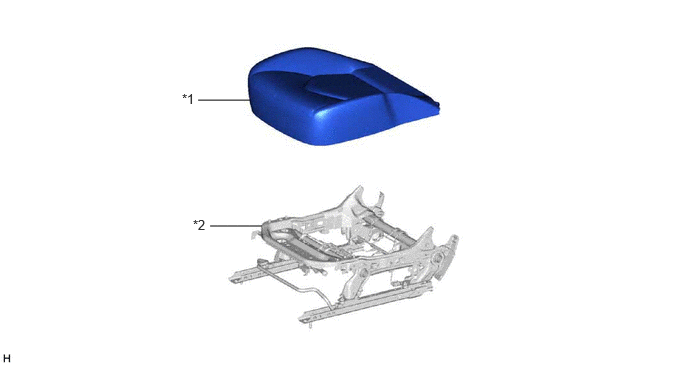

| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|

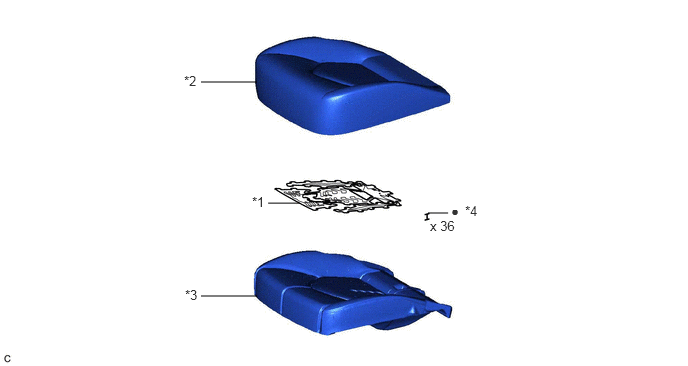

| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION PAD | *4 | TAG PIN |
| • | Non-reusable part | - | - |
