Removal [10/2022 - 11/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE FRONT SEAT ASSEMBLY RH

    Refer to REMOVAL [10/2022 - 11/2023]

  3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 4

  4. REMOVE RECLINING HINGE COVER

    Refer to PROCEDURE - Step 5

  5. REMOVE RECLINING ADJUSTER RELEASE HANDLE

    Refer to PROCEDURE - Step 6

  6. REMOVE FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 7

  7. REMOVE FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 8

  8. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 9

  9. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 18

  10. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

    Refer to PROCEDURE - Step 20

  11. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY

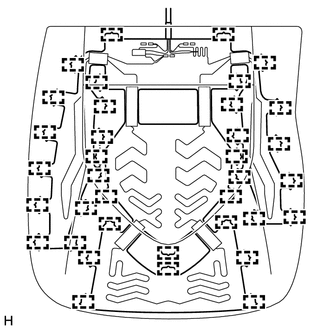

    1. Remove the 36 tag pins and front seat cushion heater assembly from the separate type front seat cushion cover.
      GTY899073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
