Installation [12/2019 - ]: Procedure

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY

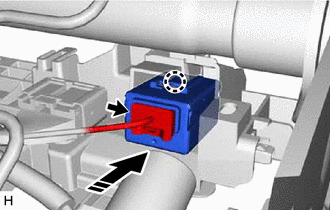

    1. Engage the claw to install the seat heater control sub-assembly as shown in the illustration.
      GTY926460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL FRONT SEAT ASSEMBLY

    for Manual Seat: Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]

    for Power Seat: Refer to INSTALLATION [12/2019 - 10/2022] , or refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
