Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH

    for 60/40 Split Seat Type LH Side:

    Refer to REMOVAL [12/2019 - ]

    for Captain Seat Type:

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY LH
    1. for 60/40 Split Seat Type LH Side or Captain Seat Type:
      1. Disengage the 2 hooks to disconnect the separate type rear seat cushion cover with pad.
        GTY896820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.

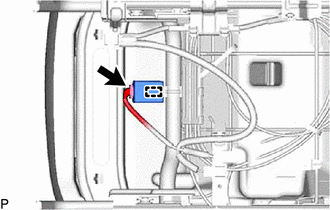

        GTY907797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the clamp to remove the seat heater control sub-assembly LH.
  3. REMOVE REAR NO. 1 SEAT ASSEMBLY RH

    for 60/40 Split Seat Type RH Side:

    Refer to REMOVAL [12/2019 - ]

    for Captain Seat Type:

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY RH
    1. for 60/40 Split Seat Type RH Side:
      1. Disengage the 2 hooks to disconnect the separate type rear seat cushion cover with pad.

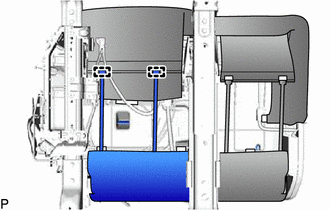

        GTY930532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.

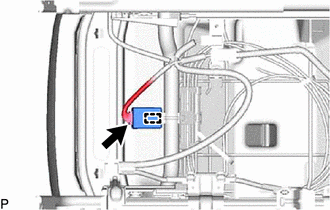

        GTY907798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the clamp to remove the seat heater control sub-assembly RH.
    2. for Captain Seat Type:

      HINT:

      Use the same procedure as for the LH side.
