Removal [10/2022 - 11/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  3. REMOVE POSITION CONTROL ECU ASSEMBLY

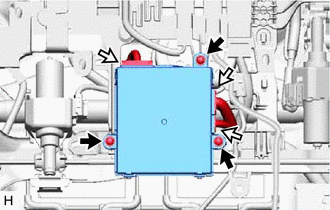

    1. Disconnect the 3 connectors.
      GTY909098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Remove the 3 screws and position control ECU assembly.
