Reassembly [12/2019 - ]: Procedure

  1. INSTALL REAR SEAT CUSHION FRAME SUB-ASSEMBLY LH
    1. Install the rear seat cushion frame sub-assembly LH with the 4 nuts.
      GTY896869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

  2. INSTALL FRONT INNER SEAT TRACK UPPER RAIL BRACKET LH
    1. Install the front inner seat track upper rail bracket LH with the 2 nuts.
      GTY858490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

  3. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH

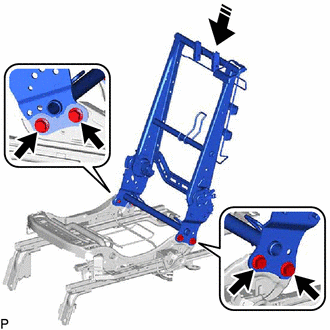

    1. Temporarily install the rear seatback frame sub-assembly LH to the No. 1 seat cushion frame sub-assembly LH as shown in the illustration.
      GTY861708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Temporarily install the 4 bolts.

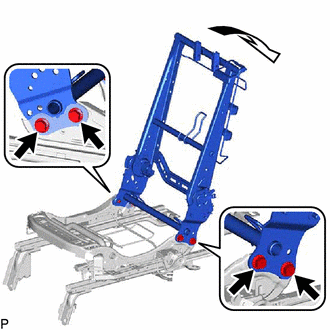

    3. Tighten the 4 bolts while pulling the rear seatback frame sub-assembly LH as shown in the illustration.

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      GTY922687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 RECLINING CONTROL LINK SUB-ASSEMBLY LH
    1. Install the No. 2 reclining control link sub-assembly LH with the 2 nuts.
      GTY939099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  5. INSTALL NO. 1 RECLINING CONTROL LINK SUB-ASSEMBLY LH
    1. Install the No. 1 reclining control link sub-assembly LH with the 2 nuts.
      GTY896870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  6. INSTALL REAR SEAT RECLINING CONTROL CABLE
    1. Route the rear seat reclining control cable as shown in the illustration and engage the clamp.
      GTY896766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 10 clamps and cable clamp to install the rear seat reclining control cable.
      GTY896763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY LH
    1. Route the rear No. 1 seat track control cable assembly LH as shown in the illustration and engage the 2 clamps.
      GTY843983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Clamp Wire Harness Clamp
    2. Install the rear No. 1 seat track control cable assembly LH with the 2 wire harness clamps.
  8. INSTALL REAR SEAT WIRE LH
    1. w/o Seat Heater System:
      GTY908098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 7 clamps to install the rear seat wire LH.
    2. w/ Seat Heater System:
      GTY896768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 8 clamps to install the rear seat wire LH.
  9. INSTALL REAR NO. 2 SEAT CUSHION HINGE UPPER COVER RH
    1. Engage the claw and guide as shown in the illustration to install the rear No. 2 seat cushion hinge upper cover RH.
      GTY901810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  10. INSTALL REAR NO. 2 SEAT CUSHION HINGE UPPER COVER LH
    1. Engage the claw and guide as shown in the illustration to install the rear No. 2 seat cushion hinge upper cover LH.
      GTY918508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL RECLINING HINGE COVER LH
    1. Engage the clip and 4 claws as shown in the illustration to install the reclining hinge cover LH.
      GTY883303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  12. INSTALL REAR NO. 1 SEAT RECLINING COVER LH
    1. Engage the claw and guide as shown in the illustration to install the rear No. 1 seat reclining cover LH.
      GTY870472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL REAR SEAT INNER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  14. INSTALL REAR SEAT CUSHION HINGE COVER LH
    1. Engage the 3 claws as shown in the illustration to install the rear seat cushion hinge cover LH.
      GTY864957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  15. INSTALL REAR NO. 1 SEAT RECLINING COVER RH
    1. Engage the claw and guide as shown in the illustration to install the rear No. 1 seat reclining cover RH.
      GTY929825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL REAR SEAT CUSHION REAR MOULDING LH

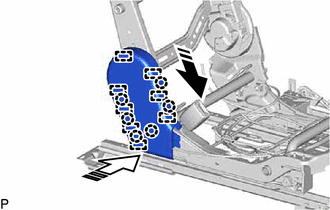

    1. Engage the 6 claws and 8 guides as shown in the illustration to install the rear seat cushion rear moulding LH.
      GTY900100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  17. INSTALL RECLINING REMOTE CONTROL BEZEL LH
    1. Engage the 2 claws and guide to install the reclining remote control bezel LH.
      GTY896818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  19. INSTALL SEPARATE TYPE REAR SEATBACK COVER

    HINT:

    When installing a separate type rear seatback cover, refer to precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [12/2019 - ]

    1. Engage the 6 claws to install the separate type rear seatback cover to the separate type rear seatback pad LH.
      GTY896762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the separate type rear seatback cover.

  20. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD
    1. Install the separate type rear seatback cover with pad to the rear seatback frame sub-assembly LH.
    2. Engage the hook.
      GTY896760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws as shown in the illustration to install the 2 rear seat headrest supports.
      GTY898142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  21. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH
    1. Engage the rear seat reclining control cable as shown in the illustration.
      GTY941575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      As shown in the illustration, pass the rear seat reclining control cable to the left of the clips used to install the rear seatback board sub-assembly LH.

    2. Engage the 2 guides as shown in the illustration.
      GTY886843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    3. Engage the 6 clips and 2 claws as shown in the illustration to install the rear seatback board sub-assembly LH.
      GTY896799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the hook.
      GTY896798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Close the 2 fasteners as shown in the illustration.
      GTY846939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  22. INSTALL REAR SEATBACK COVER LH
    1. Engage the 6 claws as shown in the illustration to install the rear seatback cover LH.
      GTY945074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws as shown in the illustration.
      GTY939078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH
    1. Connect the rear seat reclining control cable.
      GTY896776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide as shown in the illustration.
      GTY870585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the reclining remote control lever sub-assembly LH with the 2 screws.
      GTY939079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR SEATBACK LOCK STRIKER COVER LH
    1. Engage the 2 guides and claw as shown in the illustration to install the rear seatback lock striker cover LH.
      GTY870132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  25. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY LH (w/ Seat Heater System)
    1. Engage the clamp to install the seat heater control sub-assembly LH.
      GTY896823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  26. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  27. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER

    HINT:

    When installing a separate type rear seat cushion cover, refer to precaution in order to prevent wrinkles from forming.

    Refer to PRECAUTION [12/2019 - ]

    1. Engage the 14 claws.
      GTY896811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the separate type rear seat cushion cover.

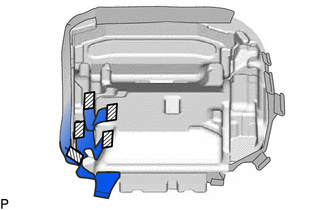

    2. Engage the 5 fasteners to install the separate type rear seat cushion cover.
      GTY898368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  28. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
    1. Temporarily install the separate type rear seat cushion cover with pad to the No. 1 seat cushion frame sub-assembly LH.
    2. Engage the 6 hooks.
      GTY896816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the hook.
      GTY857934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 2 hooks.
      GTY896817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/ Seat Heater System:
      GTY939088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 clamps.
      2. Connect the 2 connectors.
    6. Engage the clamp.
      GTY944987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Engage the 3 hooks.
      GTY896819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the 2 hooks to install the separate type rear seat cushion cover with pad.
      GTY896820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR SEAT CUSHION MOULDING LH
    1. Engage the 5 claws, clip and 14 guides as shown in the illustration to install the rear seat cushion moulding LH.
      GTY858529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  30. INSTALL REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY LH
    1. Connect the rear No. 1 seat track control cable assembly LH.
      GTY893753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 guides.
      GTY893755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seat No. 2 lock control lever sub-assembly LH with the 2 screws.
      GTY938425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY LH
    1. Connect the rear seat reclining control cable.
      GTY938427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 guides.
      GTY938426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seat No. 1 lock control lever sub-assembly LH with the 2 screws.
      GTY893758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL SEAT ADJUSTER COVER CAP LH
    1. Engage the 2 guides and 2 claws to install the rear seat adjuster cover cap LH.
      GTY893741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL REAR SEAT CUSHION UNDER COVER LH

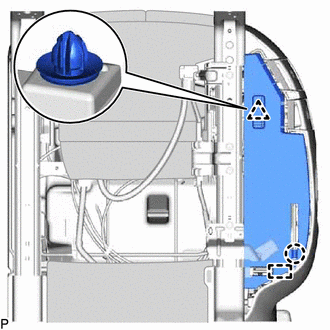

    1. Engage the claw, clip and guide to install the rear seat cushion under cover LH.
      GTY908066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH

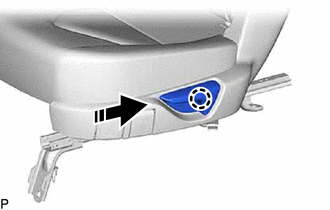

    1. Engage the claw as shown in the illustration to install the reclining adjuster release handle LH.
      GTY863501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  35. INSTALL SEAT ADJUSTER COVER CAP

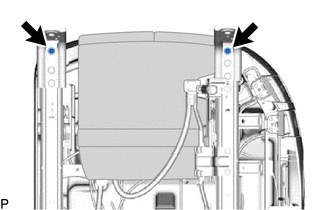

    1. Install the 2 seat adjuster cover caps.
      GTY941590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
