Components [12/2019 - ]

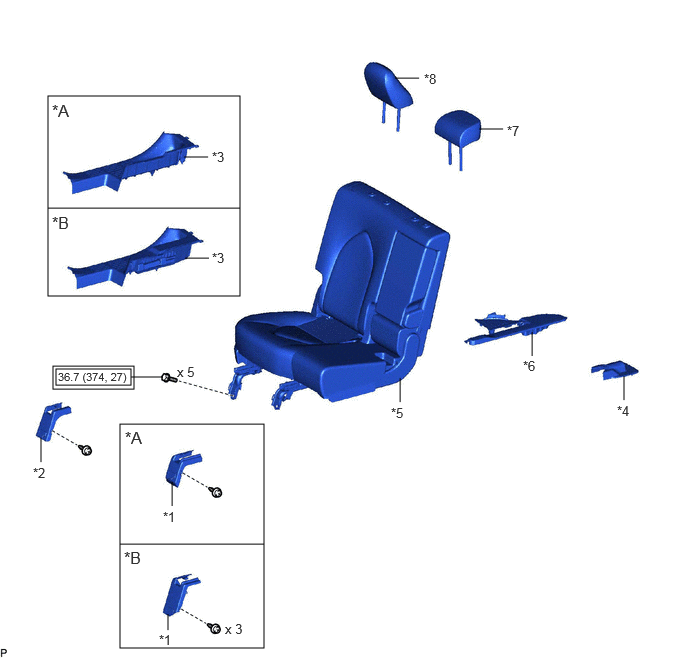

Fig 1: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (1 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Gasoline Model | *B | for HV Model |
| *1 | FRONT INNER SEAT TRACK BRACKET COVER RH | *2 | FRONT OUTER SEAT TRACK BRACKET COVER RH |
| *3 | REAR DOOR SCUFF PLATE RH | *4 | REAR INNER SEAT TRACK BRACKET COVER RH |
| *5 | REAR NO. 1 SEAT ASSEMBLY RH | *6 | REAR OUTER SEAT TRACK BRACKET COVER RH |
| *7 | REAR SEAT CENTER HEADREST ASSEMBLY | *8 | REAR SEAT HEADREST ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

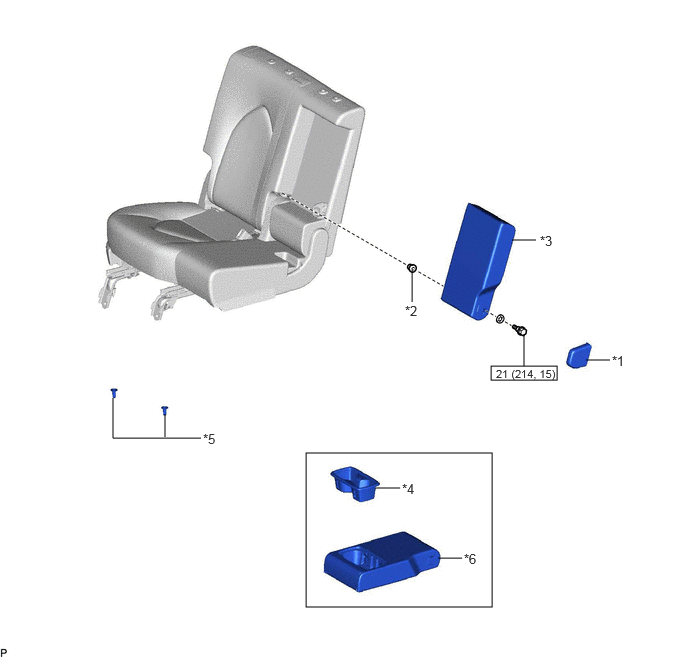

Fig 2: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (2 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER ARMREST HINGE COVER | *2 | REAR SEAT ARMREST HINGE SHIM |
| *3 | REAR SEAT CENTER ARMREST ASSEMBLY | *4 | REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY |
| *5 | SEAT ADJUSTER COVER CAP | *6 | REAR SEAT CENTER ARMREST COVER WITH PAD |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

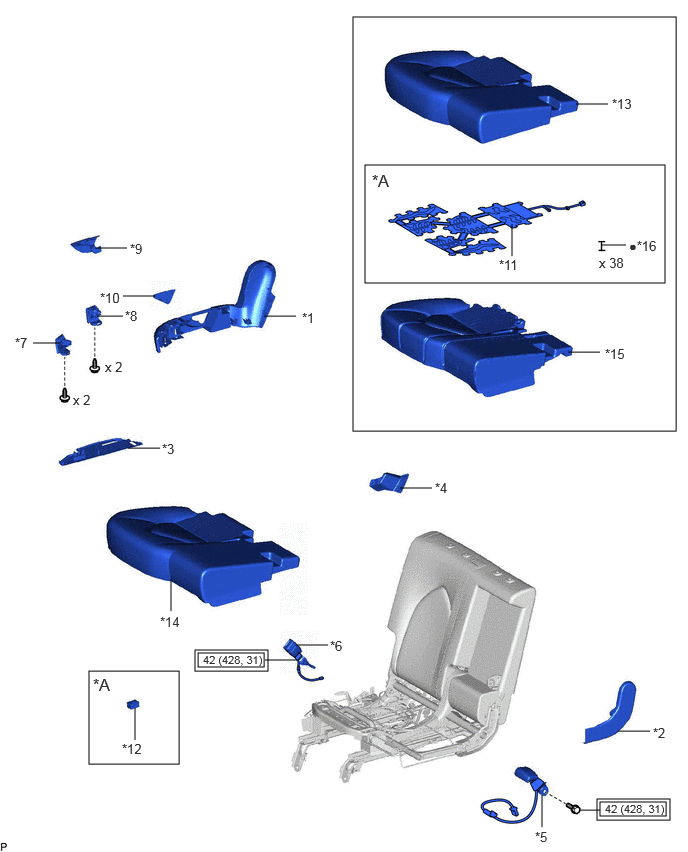

Fig 3: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (3 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Seat Heater System | - | - |
| *1 | REAR SEAT CUSHION MOULDING RH | *2 | REAR SEAT CUSHION REAR MOULDING RH |
| *3 | REAR SEAT CUSHION UNDER COVER RH | *4 | REAR SEAT HINGE COVER |
| *5 | REAR SEAT INNER BELT ASSEMBLY | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH | *8 | REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH |
| *9 | RECLINING ADJUSTER RELEASE HANDLE RH | *10 | SEAT ADJUSTER COVER CAP RH |
| *11 | SEAT HEATER ASSEMBLY | *12 | SEAT HEATER CONTROL SUB-ASSEMBLY RH |
| *13 | SEPARATE TYPE REAR SEAT CUSHION COVER | *14 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |
| *15 | REAR SEAT CUSHION PAD RH | *16 | TAG PIN |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

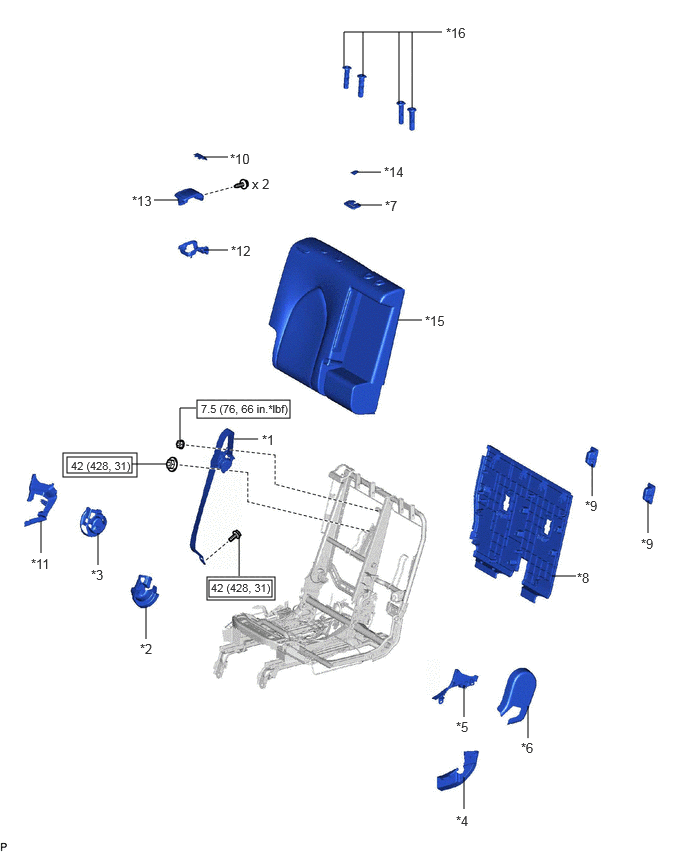

Fig 4: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (4 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY | *2 | REAR NO. 1 SEAT RECLINING COVER LH |
| *3 | REAR NO. 1 SEAT RECLINING COVER RH | *4 | REAR SEAT CUSHION HINGE COVER RH |
| *5 | REAR SEAT HINGE COVER | *6 | REAR SEAT HINGE COVER LH |
| *7 | REAR SEAT SHOULDER BELT COVER | *8 | REAR SEATBACK BOARD SUB-ASSEMBLY RH |
| *9 | REAR SEATBACK COVER RH | *10 | REAR SEATBACK LOCK STRIKER COVER RH |
| *11 | RECLINING HINGE COVER RH | *12 | RECLINING REMOTE CONTROL BEZEL RH |
| *13 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH | *14 | SEAT BELT ANCHOR COVER CAP |
| *15 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *16 | REAR SEAT HEADREST SUPPORT |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

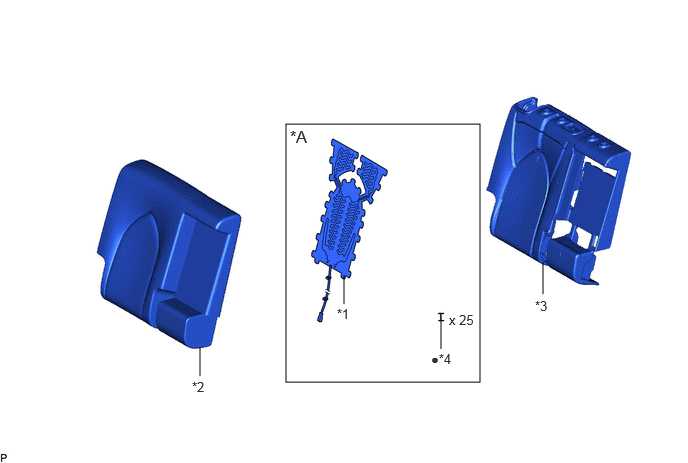

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Seat Heater System | - | - |
| *1 | SEAT HEATER ASSEMBLY | *2 | SEPARATE TYPE REAR SEATBACK COVER |
| *3 | SEPARATE TYPE REAR SEATBACK PAD | *4 | TAG PIN |
| • | Non-reusable part | - | - |

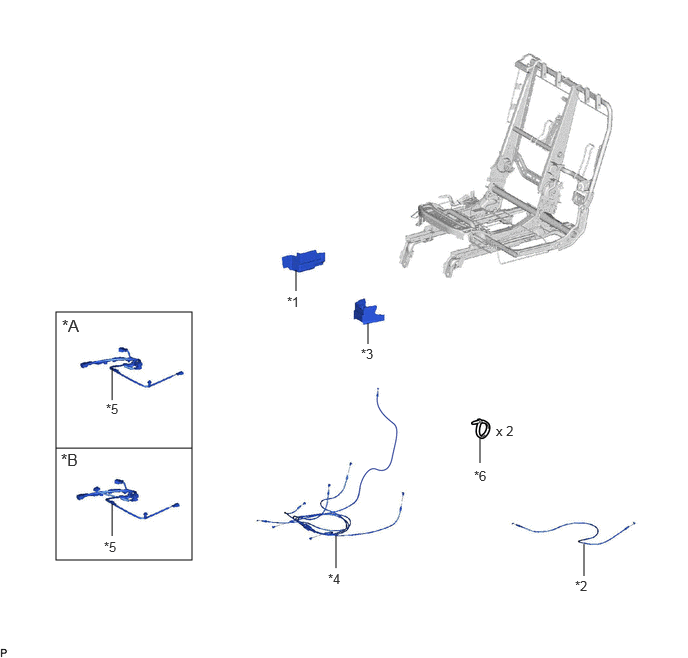

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Seat Heater System | *B | w/ Seat Heater System |
| *1 | REAR NO. 1 SEAT CUSHION HINGE UPPER COVER RH | *2 | REAR NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY RH |
| *3 | REAR SEAT CUSHION HINGE LOWER COVER RH | *4 | REAR SEAT RECLINING CONTROL CABLE |
| *5 | REAR SEAT WIRE RH | *6 | WIRE HARNESS CLAMP |

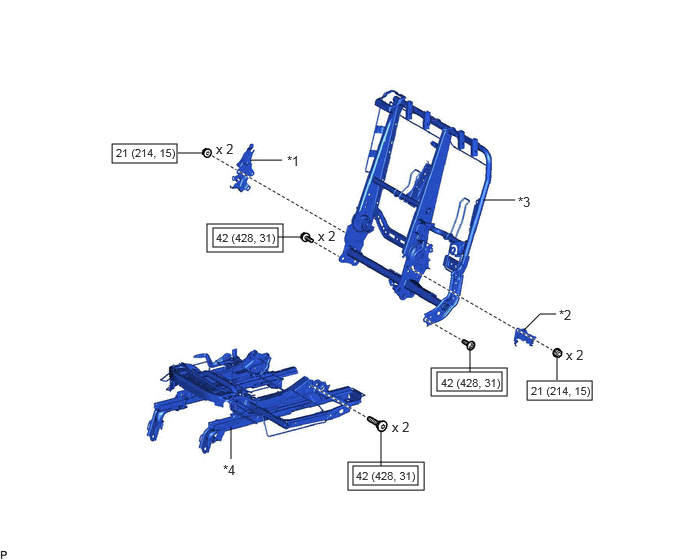

Fig 7: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (7 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 RECLINING CONTROL LINK SUB-ASSEMBLY RH | *2 | NO. 2 RECLINING CONTROL LINK SUB-ASSEMBLY RH |
| *3 | REAR SEATBACK FRAME SUB-ASSEMBLY RH | *4 | NO. 1 SEAT CUSHION FRAME SUB-ASSEMBLY RH |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

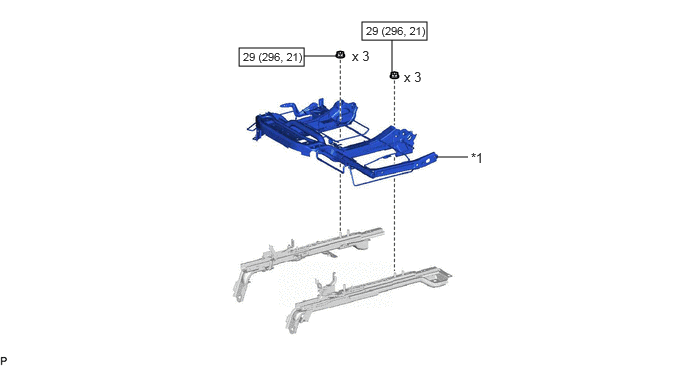

Fig 8: Rear No. 1 Seat Assembly (For 60/40 Split Seat Type RH Side) Replacement Components With Torque Specifications (8 Of 8)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SEAT CUSHION FRAME SUB-ASSEMBLY RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
