Reassembly [12/2019 - ]: Procedure

1. Install the rear seat cushion frame sub-assembly RH with the 6 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

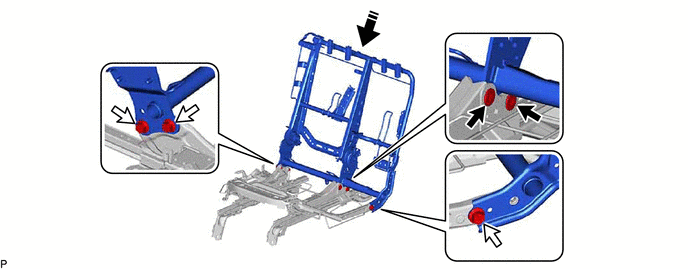

1. Temporarily install the rear seatback frame sub-assembly RH to the No. 1 seat cushion frame sub-assembly RH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt (A)		Bolt (B)
   	Install in this Direction	-	-

2. Temporarily install the 3 bolts (B).
3. Using a T55 "TORX" socket wrench, temporarily install the 2 bolts (A).
4. Tighten the 3 bolts (B) while pulling the rear seatback frame sub-assembly RH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt (A)

   Bolt (B)

   Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

5. Using a T55 "TORX" socket wrench, tighten the 2 bolts (A) to install the rear seatback frame sub-assembly RH.

   Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

1. Install the No. 2 reclining control link sub-assembly RH with the 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

1. Install the No. 1 reclining control link sub-assembly RH with the 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

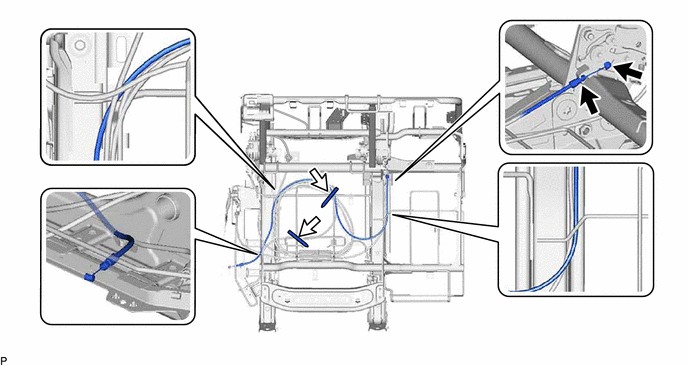

1. Route the rear seat reclining control cable as shown in the illustration and engage the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the 12 clamps to install the rear seat reclining control cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Route the rear No. 1 seat track control cable assembly RH as shown in the illustration and engage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Clamp

   Wire Harness Clamp

2. Install the rear No. 1 seat track control cable assembly RH with the 2 wire harness clamps.

1. w/o Seat Heater System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

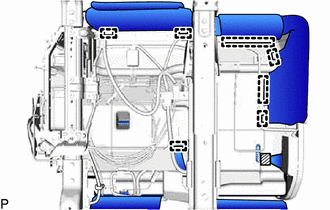

   1. Engage the 10 clamps to install the rear seat wire RH.
2. w/ Seat Heater System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the 11 clamps to install the rear seat wire RH.

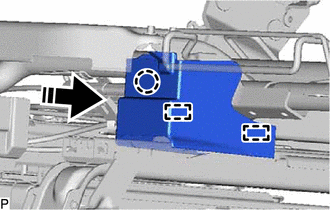

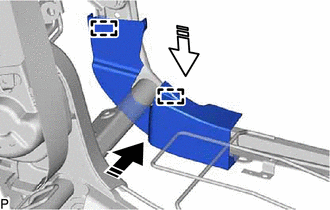

1. Engage the claw and guide as shown in the illustration to install the rear No. 1 seat cushion hinge upper cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

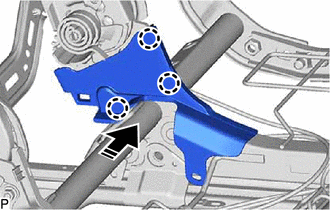

1. Engage the claw and 2 guides as shown in the illustration to install the rear seat cushion hinge lower cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

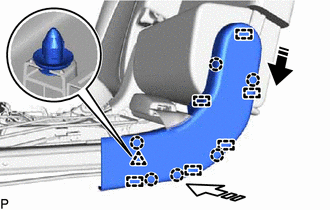

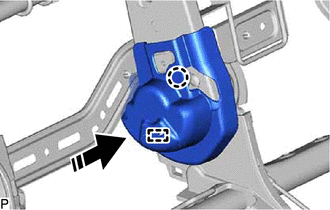

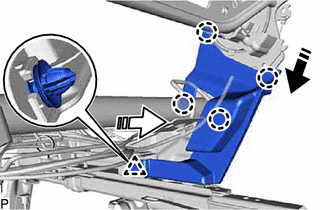

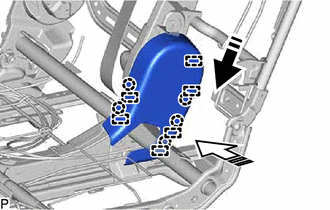

1. Engage the 4 claws and clip as shown in the illustration to install the reclining hinge cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

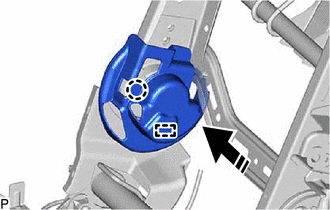

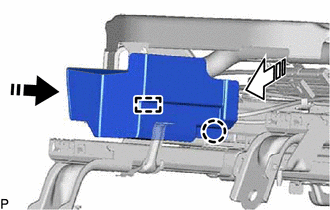

1. Engage the claw and guide as shown in the illustration to install the rear No. 1 seat reclining cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Engage the 3 claws as shown in the illustration to install the rear seat hinge cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Engage the claw and guide as shown in the illustration to install the rear No. 1 seat reclining cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

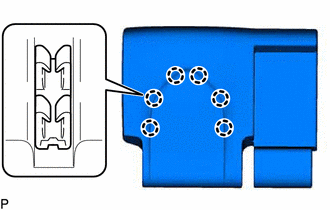

1. Engage the 5 claws and 6 guides as shown in the illustration to install the rear seat hinge cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

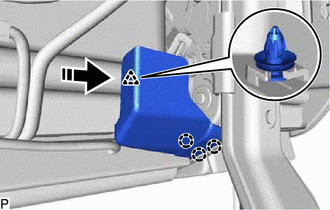

1. Engage the 2 guides as shown in the illustration to install the rear seat cushion hinge cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

Refer to PROCEDURE - Step 1

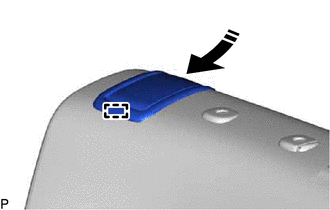

1. Engage the 2 claws and guide to install the reclining remote control bezel RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

HINT:

When installing a separate type rear seatback cover, refer to precaution in order to prevent wrinkles from forming.

Refer to PRECAUTION [12/2019 - ]

1. Engage the 6 claws to install the separate type rear seatback cover to the separate type rear seatback pad RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the separate type rear seatback cover.

1. Install the separate type rear seatback cover with pad to the rear seatback frame sub-assembly RH.
2. Engage the fastener and 3 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

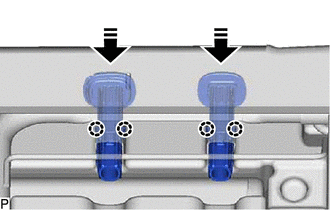

3. Engage the 4 claws as shown in the illustration to install the 2 rear seat headrest supports.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

   HINT:

   Use the same procedure for each rear seat headrest support.

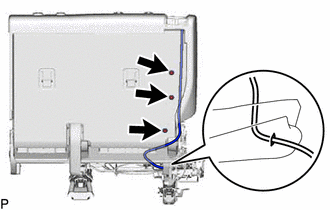

1. Engage the rear seat reclining control cable as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   As shown in the illustration, pass the rear seat reclining control cable to the right of the clips used to install the rear seatback board sub-assembly RH.

2. Engage the 4 guides as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

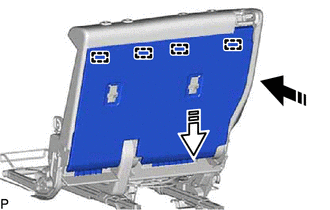

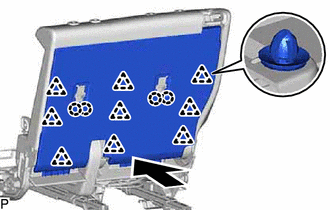

3. Engage the 9 clips and 4 claws as shown in the illustration to install the rear seatback board sub-assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Engage the 2 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

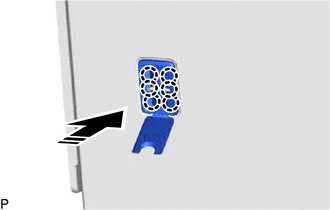

5. Close the 2 fasteners as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

1. Engage the 2 guides as shown in the illustration to install the seat belt anchor cover cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

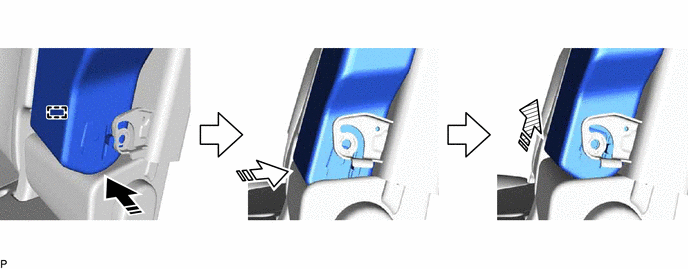

1. Engage the 2 guides and 2 claws to install the rear seat shoulder belt cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 7

1. Engage the 6 claws as shown in the illustration to install the rear seatback cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

   HINT:

   Use the same procedure for each rear seatback cover RH.

2. Engage the 2 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for each rear seatback cover RH.

1. Connect the rear seat reclining control cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the guide as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

3. Install the reclining remote control lever sub-assembly RH with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

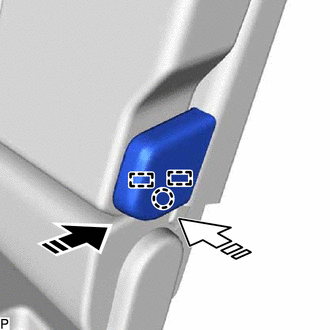

1. Engage the 2 guides and claw as shown in the illustration to install the rear seatback lock striker cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

Refer to PROCEDURE - Step 1

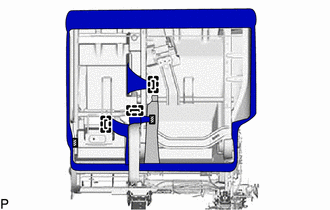

1. Engage the 6 claws, clip and 6 guides as shown in the illustration to install the rear seat cushion rear moulding RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

Refer to PROCEDURE - Step 1

1. Engage the clip and 3 claws as shown in the illustration to install the rear seat hinge cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Engage the clamp to install the seat heater control sub-assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the connector.

Refer to PROCEDURE - Step 1

HINT:

When installing a separate type rear seat cushion cover, refer to precaution in order to prevent wrinkles from forming.

Refer to PRECAUTION [12/2019 - ]

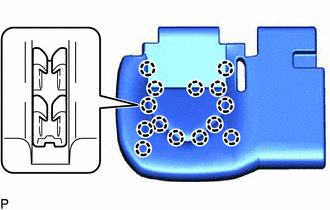

1. Engage the 14 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful not to damage the bench type rear seat cushion cover.

2. Engage the 7 fasteners to install the separate type rear seat cushion cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

1. Temporarily install the separate type rear seat cushion cover with pad to the No. 1 seat cushion frame sub-assembly RH.
2. Engage the 6 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the fastener and 7 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

4. Engage the 4 hooks and clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hook
   *b	Clamp

5. w/ Seat Heater System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the 2 clamps.
   2. Connect the 2 connectors.
6. Engage the 4 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Engage the 2 hooks to install the separate type rear seat cushion cover with pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Pass the rear seat inner belt assembly through the rubber band of the separate type rear seat cushion cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Rubber Band
   	Install in this Direction

1. Engage the 5 claws, clip and 14 guides as shown in the illustration to install the rear seat cushion moulding RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

1. Connect the rear No. 1 seat track control cable assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the 2 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the rear seat No. 2 lock control lever sub-assembly RH with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the rear seat reclining control cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the 2 guides.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the rear seat No. 1 lock control lever sub-assembly RH with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

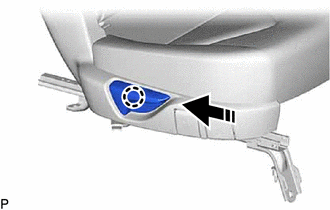

1. Engage the 2 guides and 2 claws to install the seat adjuster cover cap RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the claw, clip and guide to install the rear seat cushion under cover RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

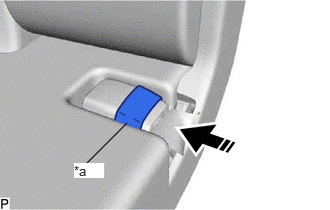

1. Engage the claw as shown in the illustration to install the reclining adjuster release handle RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

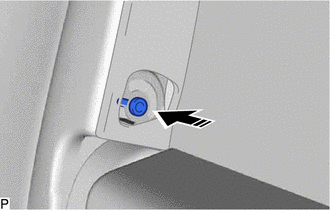

1. Install the 2 seat adjuster cover caps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

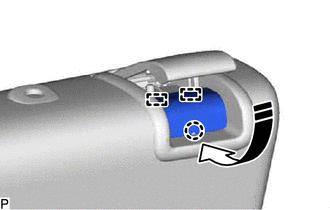

1. Engage the 2 guides and 2 claws as shown in the illustration to install the rear seat center armrest cup holder sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Install the rear seat armrest hinge shim as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

1. Engage the guide as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)		Install in this Direction (2)
   	Install in this Direction (3)	-	-

2. Install the rear seat center armrest assembly with the washer and bolt.

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

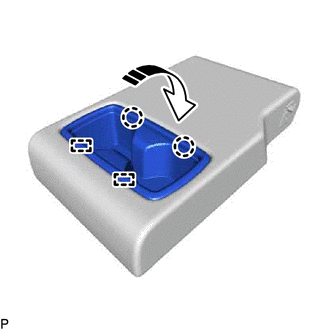

1. Engage the 2 guides and claw as shown in the illustration to install the center armrest hinge cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)
