Components [12/2019 - ]

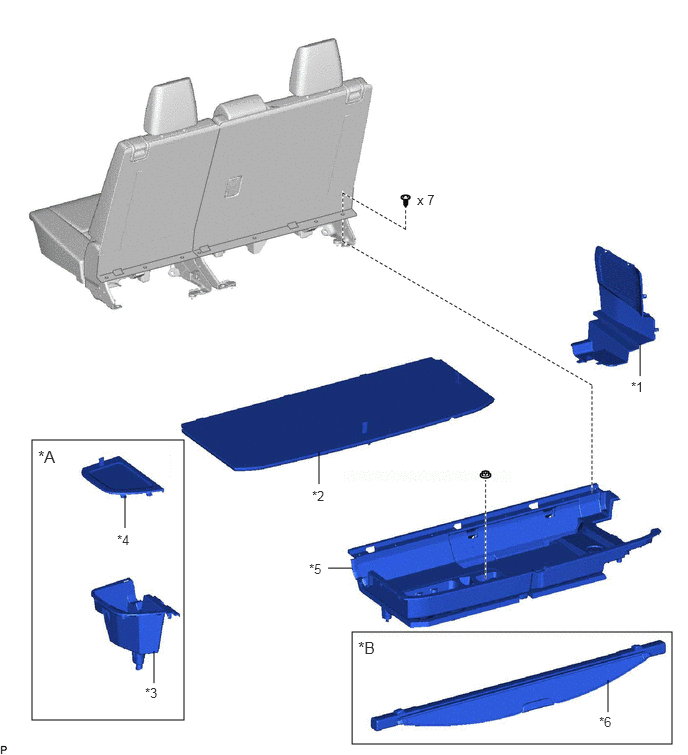

Fig 1: Rear No. 2 Seat Assembly Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Woofer	*B	w/ Tonneau Cover
*1	BATTERY SERVICE HOLE COVER	*2	DECK BOARD ASSEMBLY
*3	DECK SIDE TRIM BOX LH	*4	NO. 3 DECK BOARD SUB-ASSEMBLY
*5	REAR DECK FLOOR BOX	*6	TONNEAU COVER ASSEMBLY

Fig 2: Rear No. 2 Seat Assembly Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR NO. 2 SEAT INNER BELT ASSEMBLY LH	*2	REAR NO. 2 SEAT INNER BELT ASSEMBLY RH
*3	SEAT INNER BELT SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

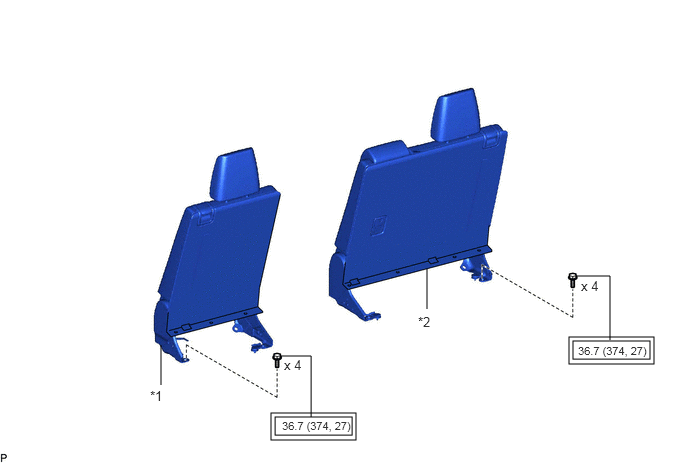

Fig 3: Rear No. 2 Seat Assembly Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEATBACK ASSEMBLY LH	*2	REAR SEATBACK ASSEMBLY RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

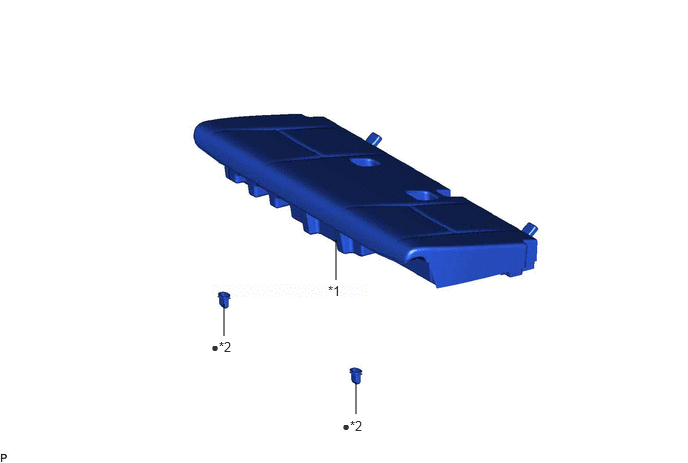

Fig 4: Rear No. 2 Seat Assembly Replacement Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION LOCK HOOK
•	Non-reusable part	-	-

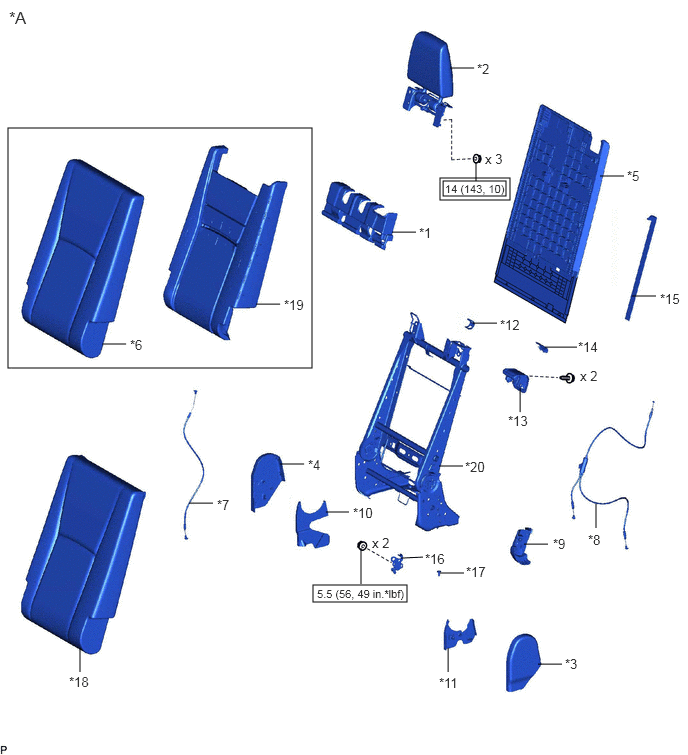

Fig 5: Rear No. 2 Seat Assembly Replacement Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for LH Side	-	-
*1	NO. 2 RECLINING REMOTE CONTROL BEZEL LH	*2	NO. 2 SEAT HEADREST ASSEMBLY
*3	NO. 2 SEAT HINGE COVER	*4	NO. 2 SEAT NO. 2 HINGE COVER
*5	NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH	*6	NO. 2 SEATBACK COVER SUB-ASSEMBLY LH
*7	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY	*8	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY LH
*9	REAR NO. 2 SEAT NO. 2 RECLINING COVER LH	*10	REAR NO. 2 SEAT RECLINING COVER LH
*11	REAR NO. 2 SEAT RECLINING COVER LH	*12	REAR SEAT HEADREST GUIDE
*13	REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY	*14	REAR SEATBACK LOCK STRIKER COVER LH
*15	REAR SIDE SEAT BAND SUB-ASSEMBLY	*16	RECLINING CONTROL LINK SUB-ASSEMBLY LH
*17	SEAT ADJUSTER COVER CAP	*18	SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH
*19	NO. 2 SEATBACK PAD LH	*20	NO. 2 SEATBACK FRAME SUB-ASSEMBLY LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

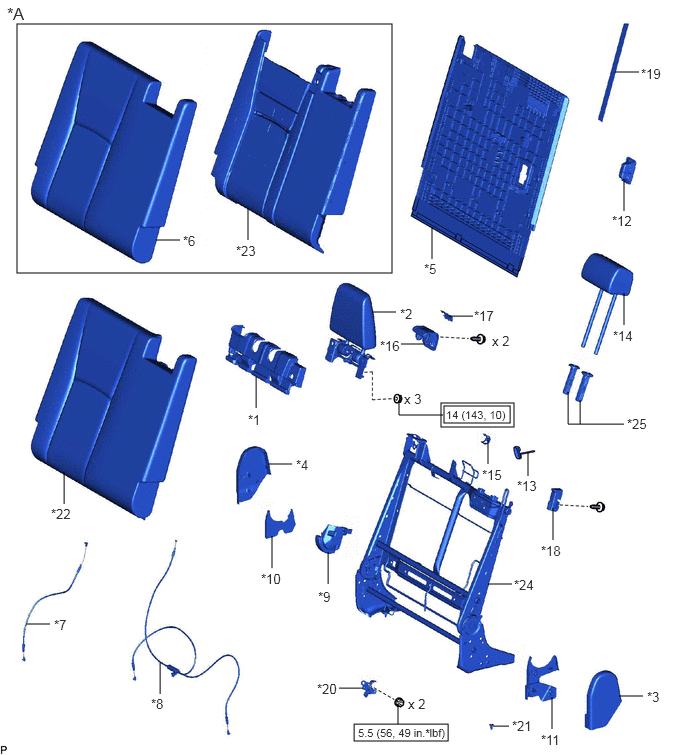

Fig 6: Rear No. 2 Seat Assembly Replacement Components With Torque Specifications (6 Of 7)

Callout	Description	Callout	Description
*A	for RH Side	-	-
*1	NO. 2 RECLINING REMOTE CONTROL BEZEL RH	*2	NO. 2 SEAT HEADREST ASSEMBLY
*3	NO. 2 SEAT HINGE COVER	*4	NO. 2 SEAT NO. 2 HINGE COVER
*5	NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH	*6	NO. 2 SEATBACK COVER SUB-ASSEMBLY RH
*7	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY	*8	REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY RH
*9	REAR NO. 2 SEAT NO. 2 RECLINING COVER RH	*10	REAR NO. 2 SEAT RECLINING COVER RH
*11	REAR NO. 2 SEAT RECLINING COVER RH	*12	REAR NO. 2 SEATBACK COVER
*13	REAR SEAT BELT HOOK	*14	REAR SEAT HEADREST ASSEMBLY
*15	REAR SEAT HEADREST GUIDE	*16	REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
*17	REAR SEATBACK LOCK STRIKER COVER RH	*18	REAR SEATBACK PROTECTOR
*19	REAR SIDE SEAT BAND SUB-ASSEMBLY	*20	RECLINING CONTROL LINK SUB-ASSEMBLY RH
*21	SEAT ADJUSTER COVER CAP	*22	SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH
*23	NO. 2 SEATBACK PAD RH	*24	NO. 2 SEATBACK FRAME SUB-ASSEMBLY RH
*25	REAR SEAT HEADREST SUPPORT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

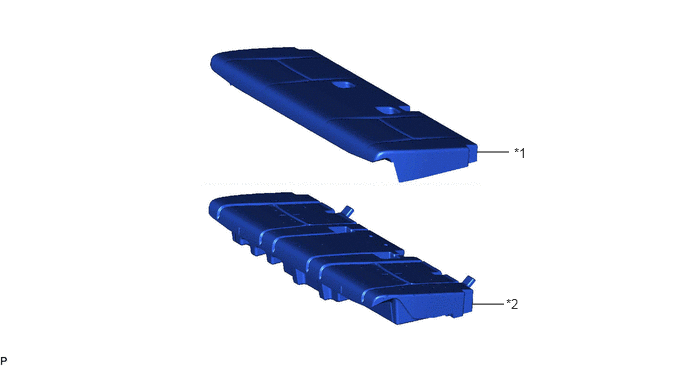

Fig 7: Rear No. 2 Seat Assembly Replacement Components (7 Of 7)

Callout	Description	Callout	Description
*1	NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY	*2	REAR SEAT CUSHION PAD SUB-ASSEMBLY
