Disassembly [12/2019 - ]: Procedure

  1. REMOVE SEAT ADJUSTER COVER CAP (for LH Side)

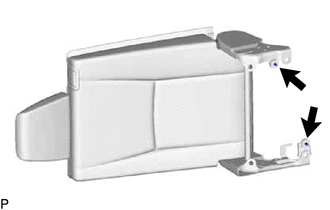

    1. Remove the 2 seat adjuster cover caps.
      GTY897971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 SEAT HINGE COVER (for LH Side)

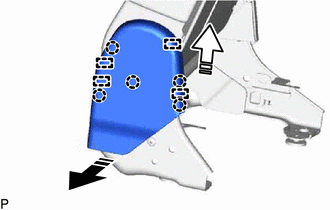

    1. Disengage the 5 claws and 4 guides as shown in the illustration to remove the No. 2 seat hinge cover.
      GTY862389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  3. REMOVE NO. 2 SEAT NO. 2 HINGE COVER (for LH Side)

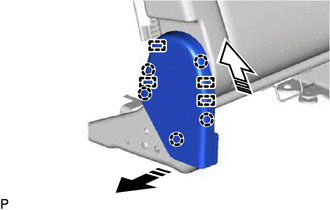

    1. Disengage the 5 claws and 4 guides as shown in the illustration to remove the No. 2 seat No. 2 hinge cover.
      GTY934943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  4. REMOVE REAR SEATBACK LOCK STRIKER COVER LH (for LH Side)

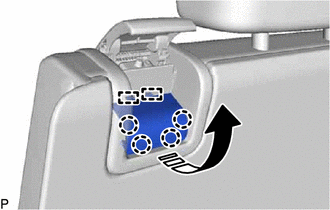

    1. Disengage the 4 claws and 2 guides as shown in the illustration to remove the rear seatback lock striker cover LH.
      GTY895839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for LH Side)

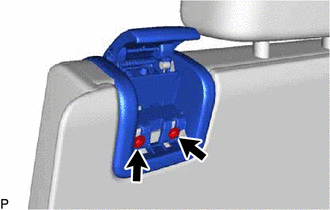

    1. Remove the 2 screws.
      GTY898005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

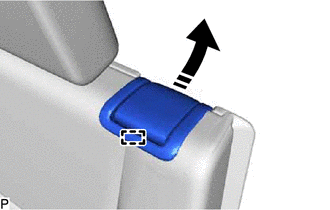

    2. Disengage the guide as shown in the illustration.
      GTY925780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

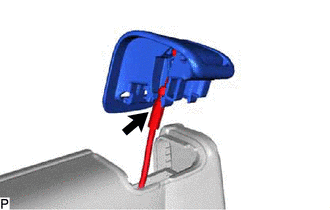

    3. Disconnect the rear No. 2 seat cushion lock cable assembly LH to remove the rear seat lock control lever sub-assembly.
      GTY898006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

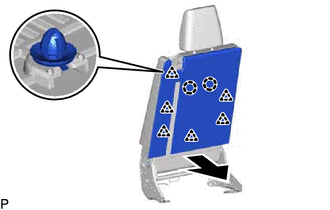

    1. Disengage the 6 clips and 2 claws as shown in the illustration.
      GTY939356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide as shown in the illustration to remove the No. 2 seatback board sub-assembly LH.
      GTY851986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH (for LH Side)

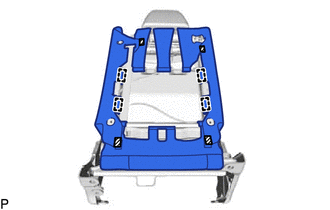

    1. Disengage the 4 fasteners and 4 hooks.
      GTY888704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

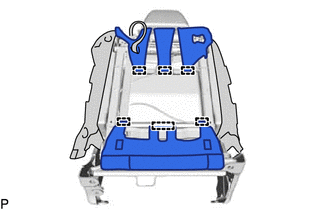

    2. Disengage the 6 hooks.
      GTY897935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 8 clips and separate type rear seatback cover with pad LH.
      GTY897934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY LH (for LH Side)

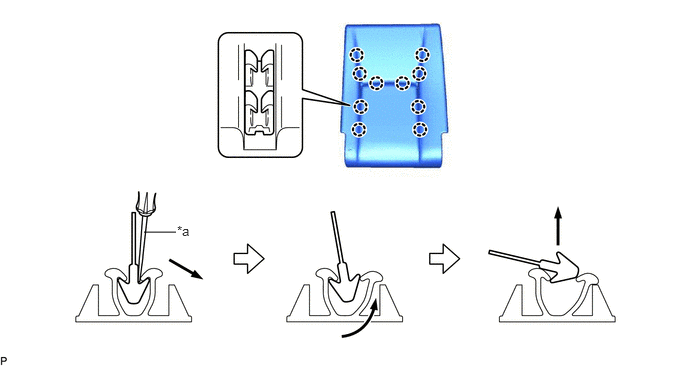

    1. Using a screwdriver, disengage the 10 claws as shown in the illustration and remove the No. 2 seatback cover sub-assembly LH from the No. 2 seatback pad LH.
      GTY902665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  9. REMOVE REAR SIDE SEAT BAND SUB-ASSEMBLY (for LH Side)

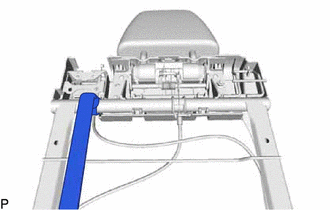

    1. Remove the rear side seat band sub-assembly.
      GTY897932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 RECLINING REMOTE CONTROL BEZEL LH (for LH Side)

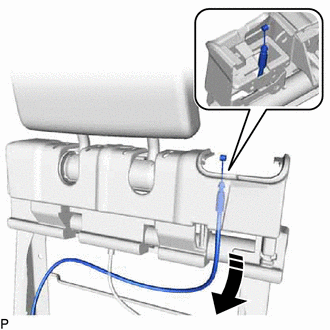

    1. Move the rear No. 2 seat cushion lock cable assembly as shown in the illustration.
      GTY903893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move in this Direction

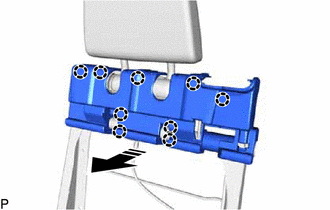

    2. Disengage the 9 claws as shown in the illustration to remove the No. 2 reclining remote control bezel LH.
      GTY915086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE REAR NO. 2 SEAT NO. 2 RECLINING COVER LH (for LH Side)

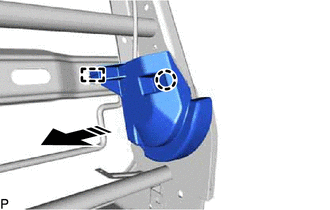

    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 2 seat No. 2 reclining cover LH.
      GTY845473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE REAR NO. 2 SEAT RECLINING COVER LH (for LH Side)

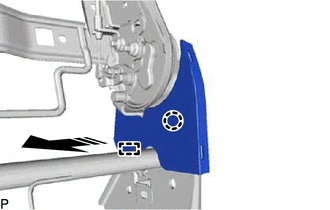

    1. Disengage the claw and guide as shown in the illustration to remove the rear No. 2 seat reclining cover LH.
      GTY862575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE REAR NO. 2 SEAT RECLINING COVER LH (for LH Side)

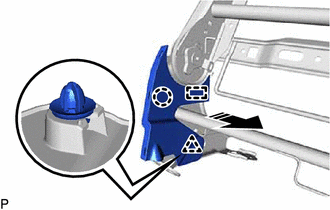

    1. Disengage the claw, clip and guide as shown in the illustration to remove the rear No. 2 seat reclining cover LH.
      GTY878088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY (for LH Side)

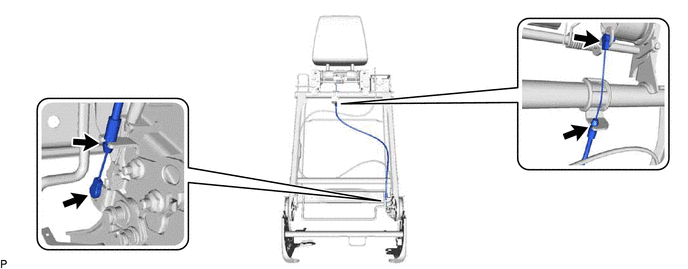

    1. Disengage the 4 clamps.
      GTY897947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

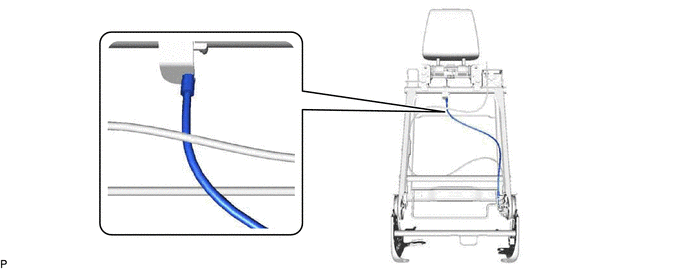

    2. Remove the rear No. 2 seat cushion lock cable assembly.
      GTY939344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY LH (for LH Side)

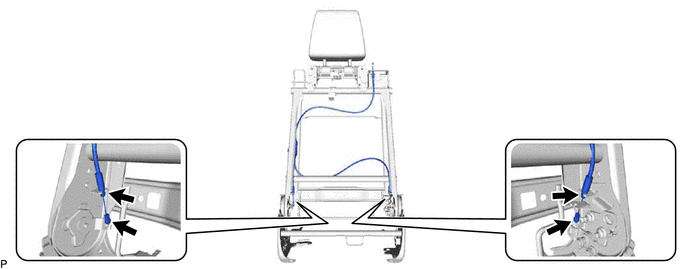

    1. Disengage the 4 clamps.
      GTY897949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

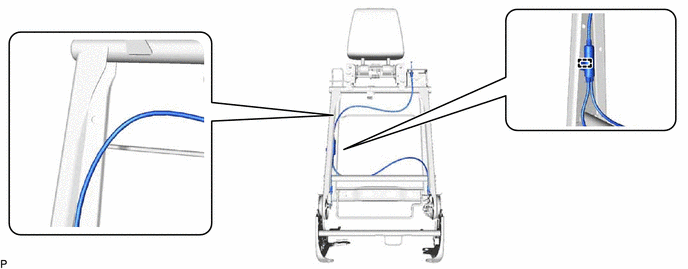

    2. Disengage the clamp to remove the rear No. 2 seat cushion lock cable assembly LH.
      GTY897946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 SEAT HEADREST ASSEMBLY (for LH Side)

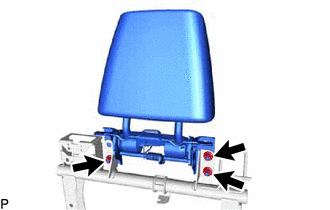

    1. Remove the 3 nuts and No. 2 seat headrest assembly.
      GTY939343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEAT HEADREST GUIDE (for LH Side)

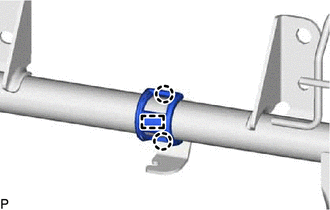

    1. Disengage the 2 claws and guide to remove the rear seat headrest guide.
      GTY897938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RECLINING CONTROL LINK SUB-ASSEMBLY LH (for LH Side)

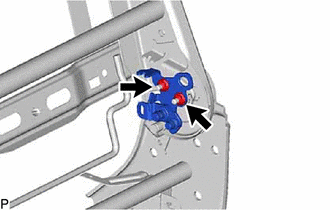

    1. Remove the 2 nuts and reclining control link sub-assembly LH.
      GTY908465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SEAT ADJUSTER COVER CAP (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE NO. 2 SEAT HINGE COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE NO. 2 SEAT NO. 2 HINGE COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE REAR SEATBACK LOCK STRIKER COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE REAR NO. 2 SEATBACK COVER (for RH Side)
    1. Disengage the 2 claws as shown in the illustration.
      GTY897898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

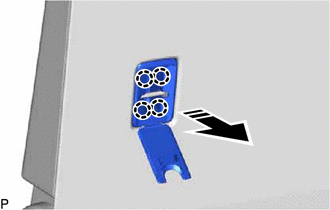

    2. Disengage the 4 claws as shown in the illustration to remove the rear No. 2 seatback cover.
      GTY852189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  25. REMOVE NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

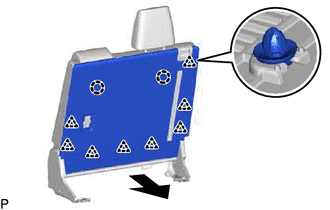

    1. Disengage the 8 clips and 2 claws as shown in the illustration.
      GTY897895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

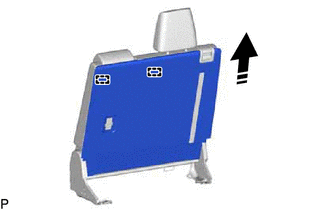

    2. Disengage the 2 guides as shown in the illustration to remove the No. 2 seatback board sub-assembly RH.
      GTY879536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Remove the rear seat headrest assembly.
  27. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH (for RH Side)

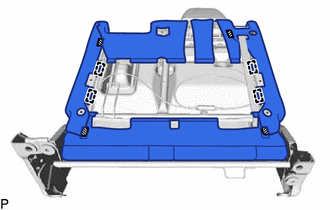

    1. Disengage the 4 fasteners and 4 hooks.
      GTY891166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener

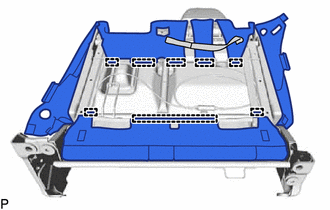

    2. Disengage the 8 hooks.
      GTY897887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

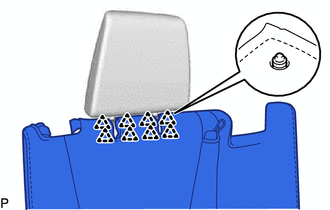

    3. Remove the 8 clips.
      GTY939329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

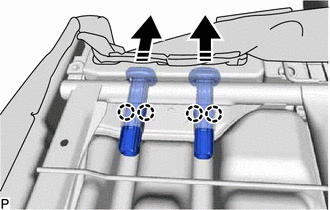

    4. Disengage the 4 claws as shown in the illustration and remove the 2 rear seat headrest supports.
      GTY921307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

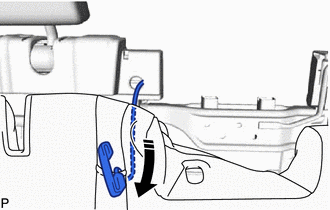

    5. Disconnect the rear seat belt hook to remove the separate type rear seatback cover with pad RH.
      GTY915219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY RH (for RH Side)

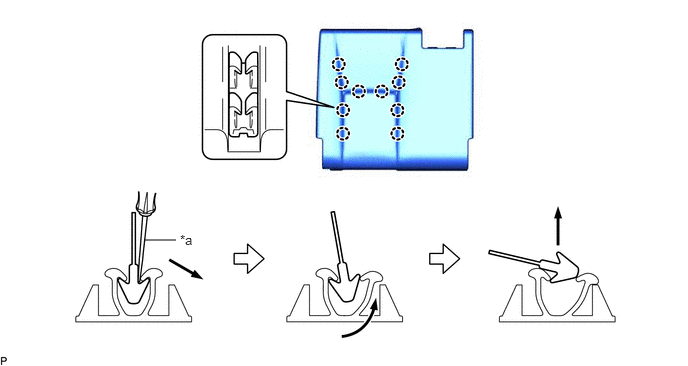

    1. Using a screwdriver, disengage the 10 claws as shown in the illustration and remove the No. 2 seatback cover sub-assembly RH from the No. 2 seatback pad RH.
      GTY926811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  29. REMOVE REAR SEAT BELT HOOK (for RH Side)

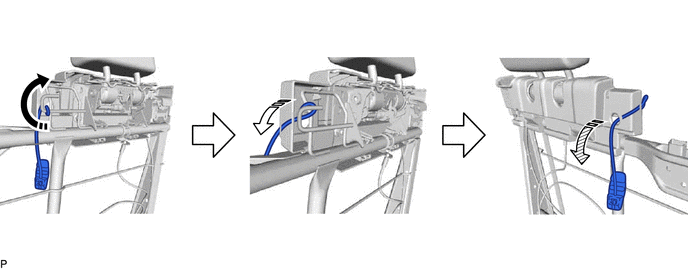

    1. Remove the rear seat belt hook as shown in the illustration.
      GTY857896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
  30. REMOVE REAR SIDE SEAT BAND SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE REAR SEATBACK PROTECTOR (for RH Side)

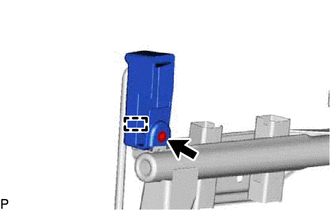

    1. Remove the screw.
      GTY897900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the rear seatback protector.
  32. REMOVE NO. 2 RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  33. REMOVE REAR NO. 2 SEAT NO. 2 RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE REAR NO. 2 SEAT RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  35. REMOVE REAR NO. 2 SEAT RECLINING COVER RH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  36. REMOVE REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY (for RH Side)

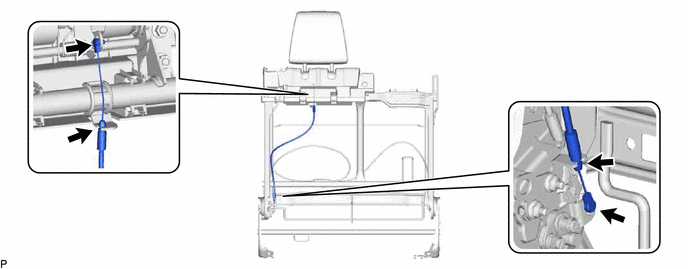

    1. Disengage the 4 clamps and remove the rear No. 2 seat cushion lock cable assembly.
      GTY897906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR NO. 2 SEAT CUSHION LOCK CABLE ASSEMBLY RH (for RH Side)

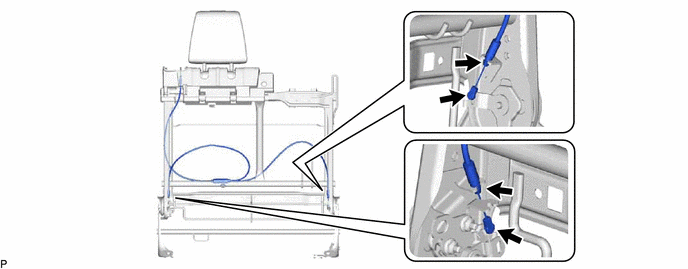

    1. Disengage the 4 clamps.
      GTY939373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

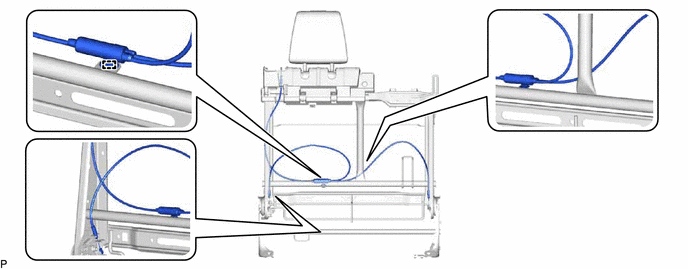

    2. Disengage the clamp and remove the rear No. 2 seat cushion lock cable assembly RH.
      GTY898078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 SEAT HEADREST ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE REAR SEAT HEADREST GUIDE (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  40. REMOVE RECLINING CONTROL LINK SUB-ASSEMBLY RH (for RH Side)

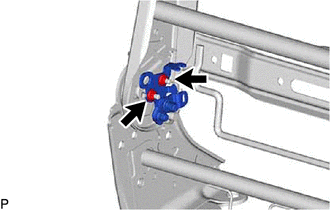

    1. Remove the 2 nuts and reclining control link sub-assembly LH.
      GTY941675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY

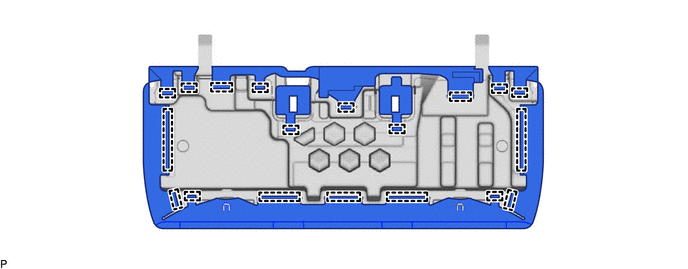

    1. Disengage the 19 hooks.
      GTY898080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

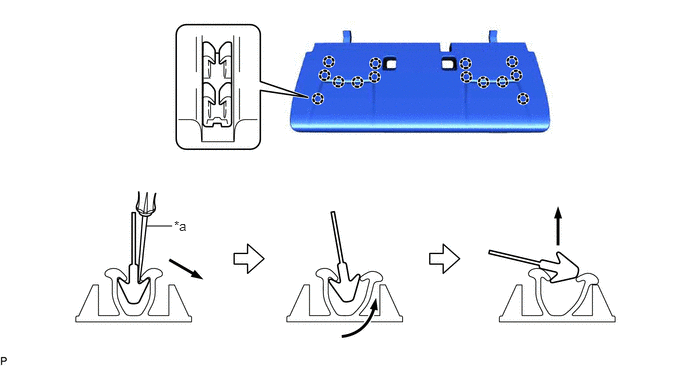

    2. Using a screwdriver, disengage the 14 claws as shown in the illustration and remove the No. 2 seat cushion cover sub-assembly from the rear seat cushion pad sub-assembly.
      GTY921861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
