Components [12/2019 - ]

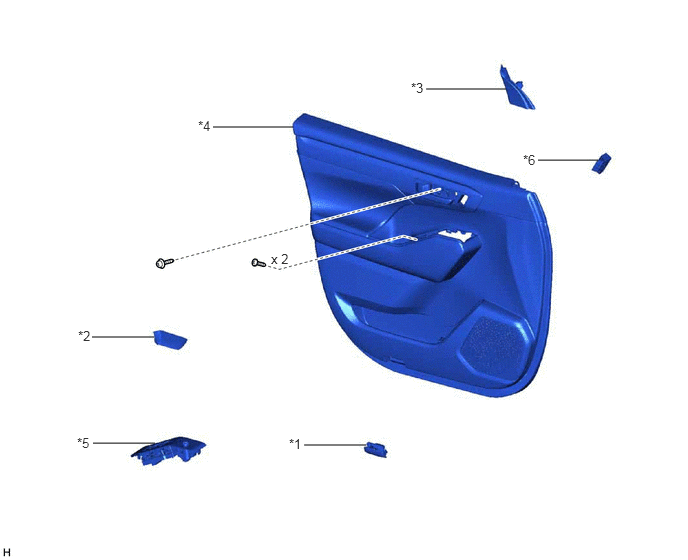

Fig 1: Seat Memory Switch Replacement Components
GTY919396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COURTESY LIGHT ASSEMBLY *2 FRONT DOOR INSIDE HANDLE BEZEL
*3 FRONT DOOR LOWER FRAME BRACKET GARNISH *4 FRONT DOOR TRIM BOARD SUB-ASSEMBLY
*5 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL *6 SEAT MEMORY SWITCH
