Components [10/2021 - ]

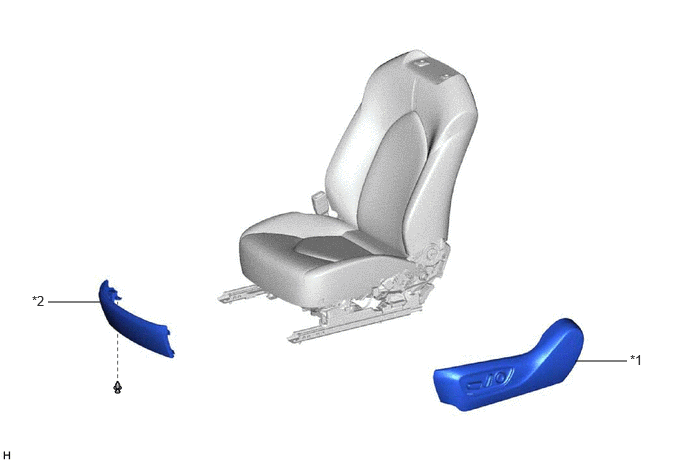

Fig 1: Power Seat Switch Replacement Components [10/2021 - ] (1 Of 2)
GTY848625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SEAT CUSHION SHIELD *2 FRONT SEAT FRONT CUSHION SHIELD

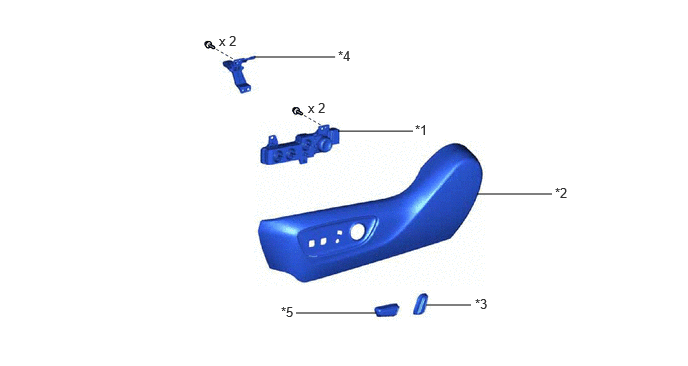

Fig 2: Power Seat Switch Replacement Components [10/2021 - ] (2 Of 2)
GTY1113675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT POWER SEAT SWITCH *2 FRONT SEAT CUSHION SHIELD
*3 RECLINING POWER SEAT SWITCH KNOB *4 SEAT ADJUSTER SHIELD CLAMP BRACKET
*5 SLIDE AND VERTICAL POWER SEAT SWITCH KNOB - -
