Removal [12/2019 - 10/2021]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2021]

  3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT SEAT FRONT CUSHION SHIELD

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT SEAT CUSHION SHIELD (for Driver Side)

    Refer to PROCEDURE - Step 8

  6. REMOVE FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

    Refer to PROCEDURE - Step 10

  7. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 12

  8. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 13

  9. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET (for Driver Side)

    Refer to PROCEDURE - Step 14

  10. REMOVE FRONT POWER SEAT SWITCH
    1. for Driver Side:
      1. Remove the 2 screws and front power seat switch from the front seat cushion shield.
        GTY939597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Front Passenger Side:
      1. Remove the 3 screws and front power seat switch from the front seat cushion shield.

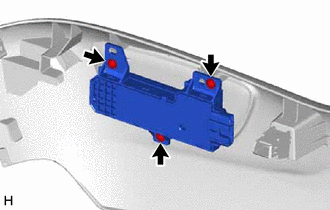

        GTY899056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
