Components [12/2019 - ]

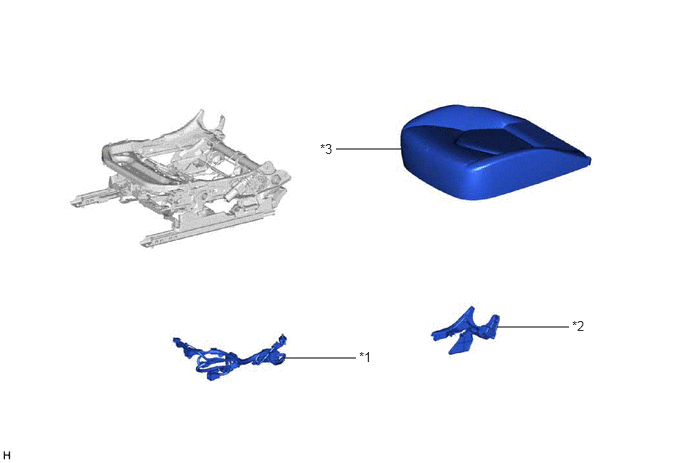

Fig 1: Front Power Seat Motor Assembly Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT FRONT CUSHION SHIELD
*3	FRONT SEAT INNER CUSHION SHIELD	-	-

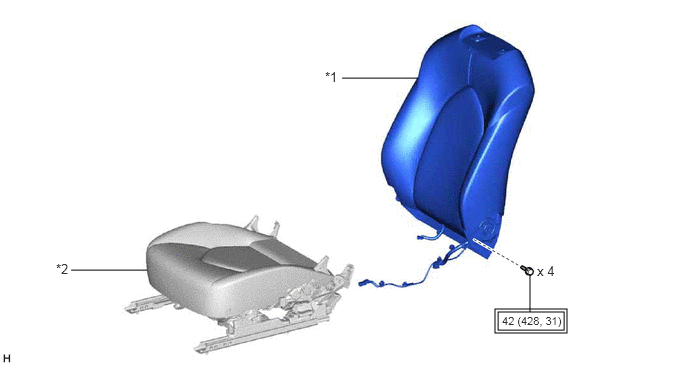

Fig 2: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 3: Front Power Seat Motor Assembly Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT WIRE	*2	RECLINING ADJUSTER INSIDE COVER LH
*3	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-

Fig 4: Front Power Seat Motor Assembly Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	POWER SEAT LIFTER MOTOR ASSEMBLY	*2	POWER SEAT TILT MOTOR ASSEMBLY
*3	FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY	*4	VERTICAL ADJUSTER SPACER
*5	FRONT SEAT ADJUSTER PLATE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
