Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Front Power Seat Control System (W/ Memory) - Diagnostic Codes & Symptom Tests >> FRONT POWER SEAT CONTROL SYSTEM (w/ Memory) >> DTC B2650: Slide Sensor Malfunction [12/2019 - ] >> Wiring Diagram

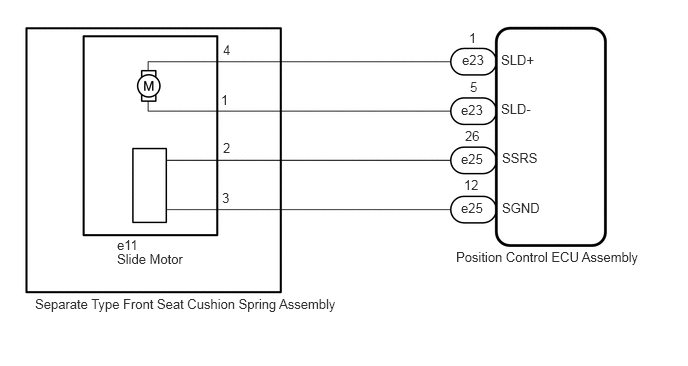

DTC B2650: Slide Sensor Malfunction [12/2019 - ]: Wiring Diagram

GTY920332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
