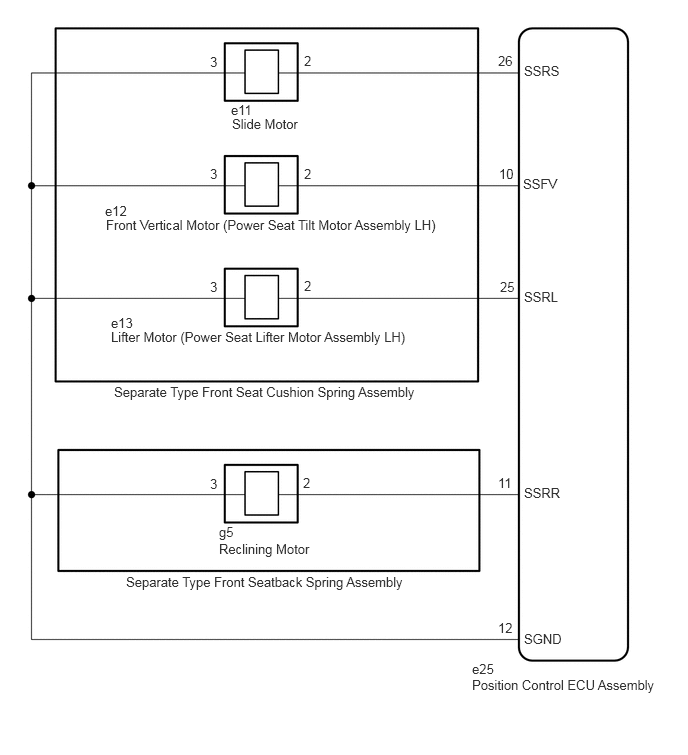

DTC B2658: Short in Sensor with Motor Power Supply Circuit [12/2019 - ]: Wiring Diagram

GTY886710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
