Climate Control Seat System - Diagnostics & Symptom Tests
>>
Climate Control Seat System
>>
System Diagram [12/2019 - 11/2023]
>>
System Diagram [12/2019 - 11/2023]
System Diagram [12/2019 - 11/2023]
Fig 1: Climate Control Seat System Diagram [12/2019 - 11/2023] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

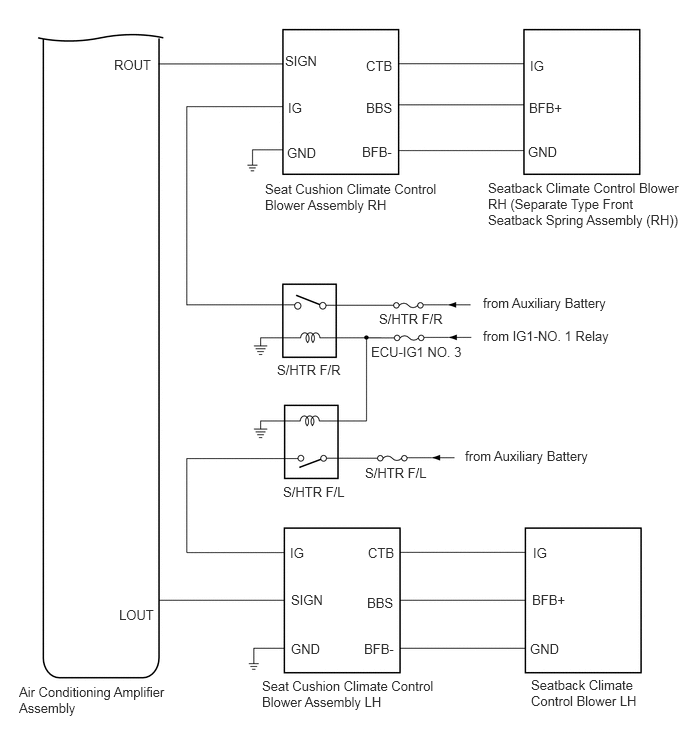

Fig 2: Climate Control Seat System Diagram [12/2019 - 11/2023] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
