Parts Location [11/2023 - ]: Illustration

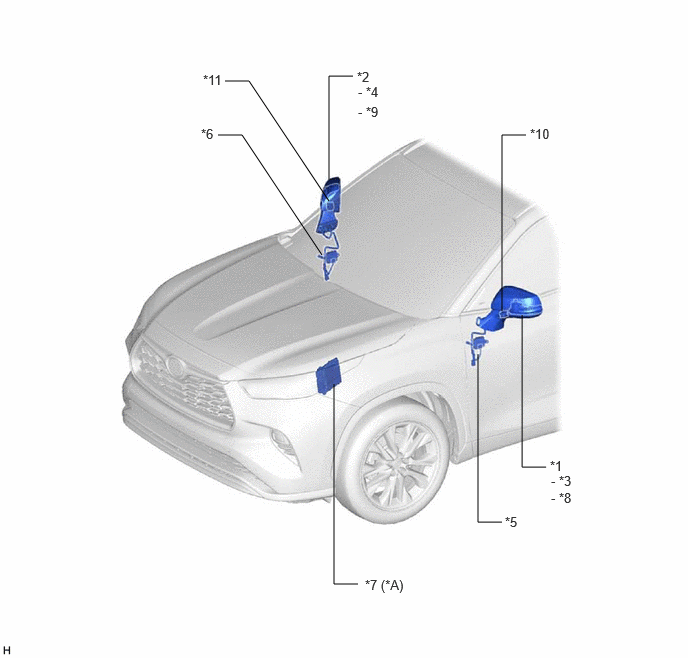

| *A | for Gasoline Model | - | - |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR) | *2 | OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) |
| *3 | OUTER MIRROR (DRIVER DOOR) | *4 | OUTER MIRROR (FRONT PASSENGER DOOR) |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR) |
| *7 | ECM | *8 | OUTER MIRROR ACTUATOR ASSEMBLY (DRIVER DOOR) |
| *9 | OUTER MIRROR ACTUATOR ASSEMBLY (FRONT PASSENGER DOOR) | *10 | OUTER MIRROR LIGHT ASSEMBLY LH |
| *11 | OUTER MIRROR LIGHT ASSEMBLY RH | - | - |

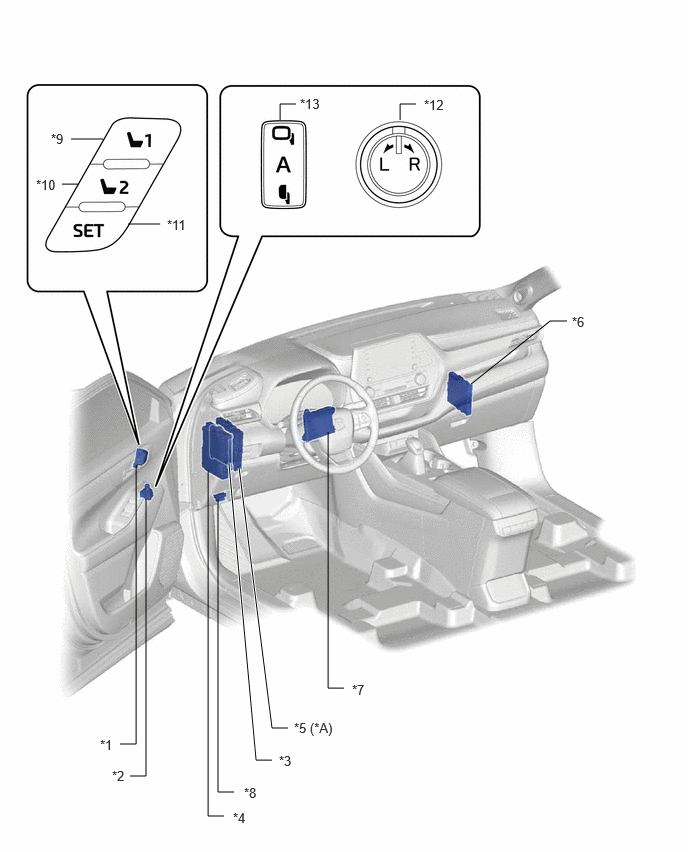

| *A | for HV Model | - | - |
| *1 | SEAT MEMORY SWITCH | *2 | OUTER MIRROR SWITCH ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | POWER DISTRIBUTION BOX ASSEMBLY - DOOR F/R FUSE - DOOR F/L FUSE - ECU-IGR NO. 3 FUSE - ECU-DCC NO. 2 FUSE |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *8 | DLC3 |
| *9 | M1 SWITCH | *10 | M2 SWITCH |
| *11 | SET SWITCH | *12 | MIRROR SELECT AND MIRROR ADJUST SWITCH |
| *13 | RETRACTABLE OUTER MIRROR SWITCH | - | - |
