System Diagram [12/2019 - 10/2022]

GTY1006755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

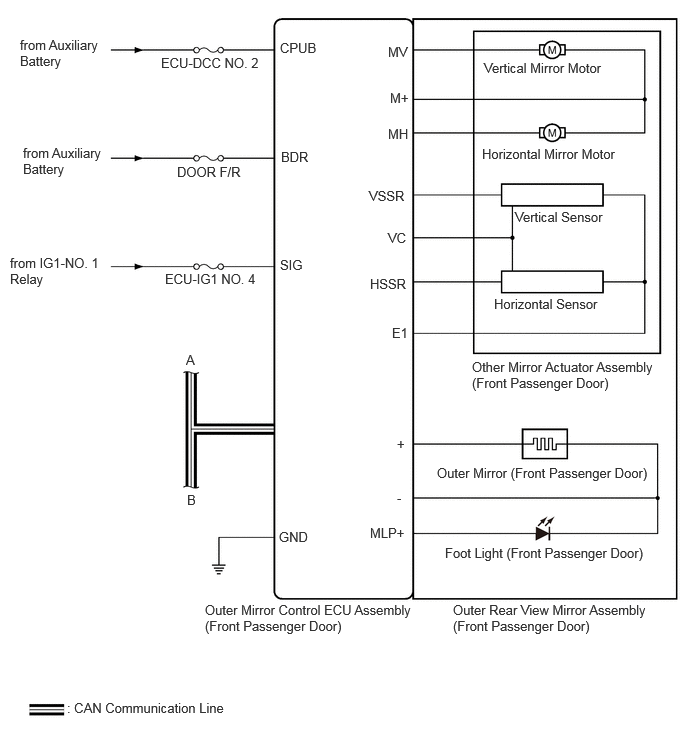

GTY1011040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

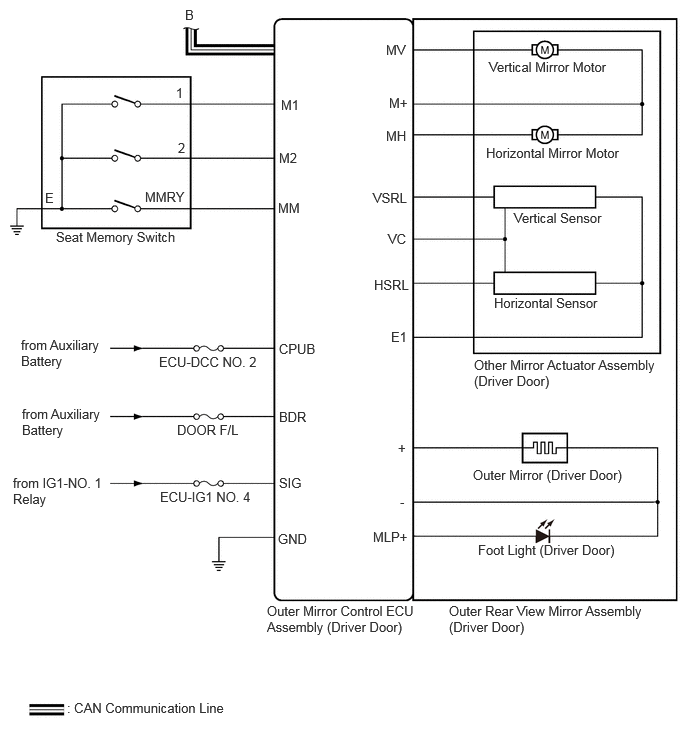

GTY1011566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Main Body ECU (Multiplex Network Body ECU) Outer Mirror Control ECU Assembly
  • IG signal
  • ACC signal
  • Outer mirror switch assembly signal
  • Mirror position request signal (memory and reactivation function)
  • Mirror position request signal (reverse shift-linked function)
 CAN
Outer Mirror Control ECU Assembly Main Body ECU (Multiplex Network Body ECU)
  • Outer mirror state signal
  • Seat memory switch signal
 CAN
Certification ECU (Smart Key ECU Assembly) Main Body ECU (Multiplex Network Body ECU) Key ID signal CAN
Air Conditioning Amplifier Assembly Outer Mirror Control ECU Assembly Mirror heater drive request signal CAN
Hybrid Vehicle Control ECU*1 Main Body ECU (Multiplex Network Body ECU) Reverse signal CAN
ECM*2
Rear Window Defogger Switch (Air Conditioning Control Assembly) Air Conditioning Amplifier Assembly Mirror heater switch (rear window defogger switch) operation signal LIN
  1. *1: for HV Model
  2. *2: for Gasoline Model
