Terminals Of Ecu [10/2022 - 11/2023]

  1. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR)

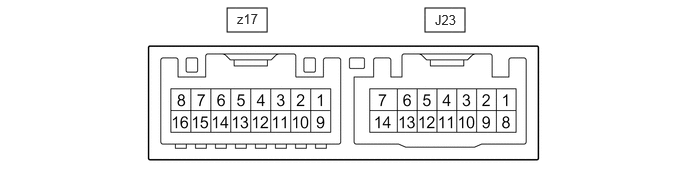

    GTY865961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the J23 outer mirror control ECU assembly (driver door) connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      J23-14 (BDR) - Body ground +B power supply Ignition switch off*1
      Always*2      		 11 to 14 V
      J23-6 (CPUB) - Body ground +B power supply Ignition switch off*1
      Always*2      		 11 to 14 V
      J23-5 (SIG) - Body ground Ignition power supply Ignition switch off → ON Below 1 V → 11 to 14 V
      J23-7 (GND) - Body ground Ground Always Below 1 Ω
      1. *1: for HV Model
      2. *2: for Gasoline Model
    3. Reconnect the J23 outer mirror control ECU assembly (driver door) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      z17-3 (MR) - Body ground Power retract mirror motor drive voltage Outer rear view mirror assembly (driver door) being retracted 11 to 14 V
      Outer rear view mirror assembly (driver door) stopped Below 1 V
      z17-11 (MF) - Body ground Power retract mirror motor drive voltage Outer rear view mirror assembly (driver door) returning 11 to 14 V
      Outer rear view mirror assembly (driver door) stopped Below 1 V
      z17-1 (MV) - z17-10 (M+) Vertical mirror motor drive voltage Driver door mirror surface moving upward → stopped 11 to 14 V → Below 1 V
      z17-10 (M+) - z17-1 (MV) Vertical mirror motor drive voltage Driver door mirror surface moving downward → stopped 11 to 14 V → Below 1 V
      z17-10 (M+) - z17-9 (MH) Horizontal mirror motor drive voltage Driver door mirror surface moving right → stopped 11 to 14 V → Below 1 V
      z17-9 (MH) - z17-10 (M+) Horizontal mirror motor drive voltage Driver door mirror surface moving left → stopped 11 to 14 V → Below 1 V
      z17-5 (VC) - z17-14 (E1) Mirror position sensor power supply Ignition switch ON 4.55 to 5.45 V
      Ignition switch off Below 1 V
      z17-6 (VSRL) - J23-7 (GND) Mirror position sensor signal Ignition switch ON 0 to 5 V
      z17-13 (HSRL) - J23-7 (GND) Mirror position sensor signal Ignition switch ON 0 to 5 V
      J23-3 (M2) - J23-7 (GND) M2 switch signal for seat memory switch M2 switch on Below 1 V
      M2 switch off 11 to 14 V
      J23-2 (M1) - J23-7 (GND) M1 switch signal for seat memory switch M1 switch on Below 1 V
      M1 switch off 11 to 14 V
      J23-1 (MM) - J23-7 (GND) SET switch signal for seat memory switch SET switch on Below 1 V
      SET switch off 11 to 14 V
      z17-4 (+) - z17-12 (-) Mirror heater relay drive voltage Mirror heater switch (rear window defogger switch) on 11 to 14 V
      z17-2 (MLP+) - z17-12 (-) Foot light drive output Foot light off → on Below 1 V → 11 to 14 V
  2. CHECK OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR)

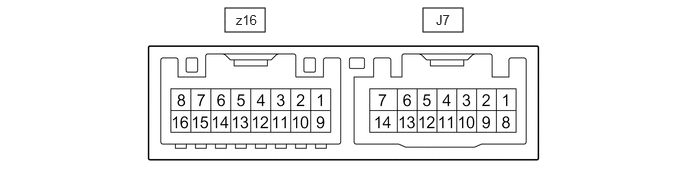

    GTY865957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the J7 outer mirror control ECU assembly (front passenger door) connector.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      J7-14 (BDR) - Body ground +B power supply Ignition switch off*1
      Always*2      		 11 to 14 V
      J7-6 (CPUB) - Body ground +B power supply Ignition switch off*1
      Always*2      		 11 to 14 V
      J7-5 (SIG) - Body ground Ignition power supply Ignition switch off → ON Below 1 V → 11 to 14 V
      J7-7 (GND) - Body ground Ground Always Below 1 Ω
      1. *1: for HV Model
      2. *2: for Gasoline Model
    3. Reconnect the J7 outer mirror control ECU assembly (front passenger door) connector.
    4. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      z16-3 (MR) - Body ground Power retract mirror motor drive voltage Outer rear view mirror assembly (front passenger door) being retracted 11 to 14 V
      Outer rear view mirror assembly (front passenger door) stopped Below 1 V
      z16-11 (MF) - Body ground Power retract mirror motor drive voltage Outer rear view mirror assembly (front passenger door) returning 11 to 14 V
      Outer rear view mirror assembly (front passenger door) stopped Below 1 V
      z16-1 (MV) - z16-10 (M+) Vertical mirror motor drive voltage Front passenger door mirror surface moving upward → stopped 11 to 14 V → Below 1 V
      z16-10 (M+) - z16-1 (MV) Vertical mirror motor drive voltage Front passenger door mirror surface moving downward → stopped 11 to 14 V → Below 1 V
      z16-10 (M+) - z16-9 (MH) Horizontal mirror motor drive voltage Front passenger door mirror surface moving right → stopped 11 to 14 V → Below 1 V
      z16-9 (MH) - z16-10 (M+) Horizontal mirror motor drive voltage Front passenger door mirror surface moving left → stopped 11 to 14 V → Below 1 V
      z16-5 (VC) - z16-14 (E1) Mirror position sensor power supply Ignition switch ON 4.55 to 5.45 V
      Ignition switch off Below 1 V
      z16-6 (VSSR) - J7-7 (GND) Mirror position sensor signal Ignition switch ON 0 to 5 V
      z16-13 (HSSR) - J7-7 (GND) Mirror position sensor signal Ignition switch ON 0 to 5 V
      z16-4 (+) - z16-12 (-) Mirror heater relay drive voltage Mirror heater switch (rear window defogger switch) on 11 to 14 V
      z16-2 (MLP+) - z16-12 (-) Foot light drive output Foot light off → on Below 1 V → 11 to 14 V
  3. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    GTY851097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the instrument panel junction block assembly and main body ECU (multiplex network body ECU) connectors.

      Refer to REMOVAL [10/2022 - 11/2023]

    2. Reconnect the instrument panel junction block assembly connectors.
    3. Measure the resistance and voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      MB-31 (BECU) - Body ground Auxiliary battery power supply Ignition switch off*1
      Always*2      		 11 to 14 V
      MB-32 (IG) - Body ground Ignition power supply (IG signal) Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V
      MB-30 (ACC) - Body ground Ignition power supply (ACC signal) Ignition switch ACC 11 to 14 V
      Ignition switch off Below 1 V
      MB-11 (GND1) - Body ground Ground Always Below 1 Ω
      H42-19 (GND2) - Body ground Ground Always Below 1 Ω
      1. *1: for HV Model
      2. *2: for Gasoline Model
    4. Connect the main body ECU (multiplex network body ECU) connectors.
    5. Measure the voltage according to the value(s) in the table below.
      Tester Connection Terminal Description Condition Specified Condition
      H44-7 (MIRB) - H44-9 (MIRE) Mirror adjust switch signal
      • Ignition switch ACC
      • Mirror select switch L or R
      • Mirror adjust switch up
      		 Below 1.7 V
      • Ignition switch ACC
      • Mirror select switch L or R
      • Mirror adjust switch right
      		 Below 2.7 V
      • Ignition switch ACC
      • Mirror select switch L or R
      • Mirror adjust switch down
      		 Below 3.5 V
      • Ignition switch ACC
      • Mirror select switch L or R
      • Mirror adjust switch left
      		 Below 4 V
      • Ignition switch ACC
      • Mirror select switch L or R
      • Mirror adjust switch off
      		 11 to 14 V
      H44-8 (MIRS) - H44-9 (MIRE) Mirror select switch signal
      • Ignition switch ACC
      • Mirror select switch L
      		 Below 2 V
      • Ignition switch ACC
      • Mirror select switch R
      		 Below 1 V
      • Ignition switch ACC
      • Mirror select switch off
      		 11 to 14 V
      H44-16 (RET) - H44-9 (MIRE)* Retractable outer mirror switch signal
      • Ignition switch ACC
      • Retractable outer mirror switch not in retract position
      		 11 to 14 V
      • Ignition switch ACC
      • Retractable outer mirror switch in retract position
      		 Below 1 V
      H44-6 (AMR) - H44-9 (MIRE)* Retractable outer mirror switch signal
      • Ignition switch ACC
      • Retractable outer mirror switch not in auto position
      		 11 to 14 V
      • Ignition switch ACC
      • Retractable outer mirror switch in auto position
      		 Below 1 V
      1. *: w/ Automatic Retractable Mirror
