Installation [12/2019 - ]: Procedure

  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

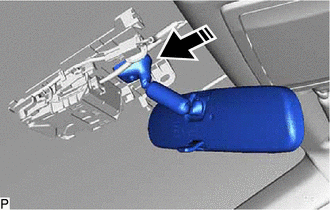

    1. Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.
      GTY923067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

      Torque: 1.5 N.m (15 kgf/cm, 13 in.lbf)

  2. INSTALL NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 3 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 3 [11/2023 - ]

  3. INSTALL NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 4 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 4 [09/2020 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]
