Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - 11/2023]

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 2 [09/2020 - 11/2023]

  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

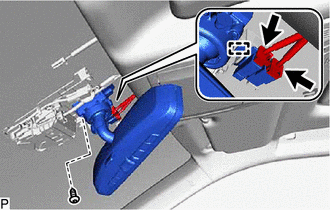

    1. Disconnect the 2 connectors.
      GTY940435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Using a T20 "TORX" socket wrench, remove the screw.

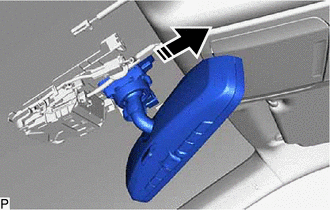

    4. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
      GTY855867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
