Removal [11/2023 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 5

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

  4. REMOVE TELEVISION CAMERA ASSEMBLY WITH NOZZLE

    Refer to PROCEDURE - Step 5

  5. REMOVE INNER MIRROR CAMERA ASSEMBLY

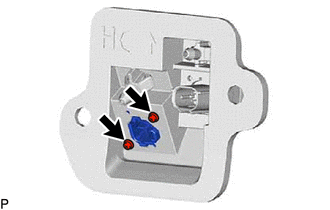

    1. Remove the 2 screws and inner mirror camera assembly.
      GTY902801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
