Inspection [12/2019 - ]: Procedure

  1. INSPECT OUTER MIRROR RH
    1. Check the outer mirror heater operation.
      1. Measure the resistance according to the value(s) in the table below.

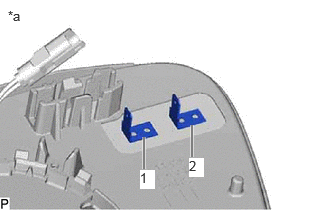

        GTY867933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror RH)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 25°C (77°F) 3.57 to 4.83 Ω

        If the result is not as specified, replace the outer mirror RH.

    2. Check the operation of the outer rear view mirror indicator. (for Type A with Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6.5 V.

      1. Connect 4 new 1.5 V dry-cell batteries in series.
      2. Apply 6 V battery voltage to the terminals of the connector, and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 1
        6 V battery negative (-) → Terminal 2        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror RH.

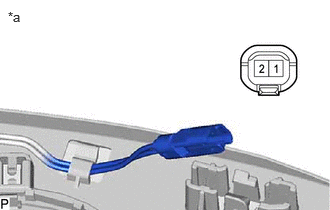

        GTY862166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror RH)
    3. Check the operation of the outer rear view mirror indicator. (for Type B with Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6.5 V.

      1. Connect 4 new 1.5 V dry-cell batteries in series.
      2. Apply 6 V battery voltage to the terminals of the connector, and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 1
        6 V battery negative (-) → Terminal 2        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror RH.

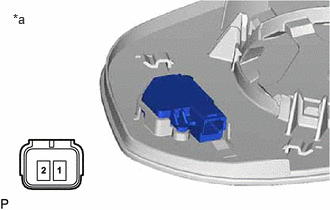

        GTY1117286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror RH)
  2. INSPECT OUTER MIRROR LH
    1. Check the outer mirror heater operation.
      1. Measure the resistance according to the value(s) in the table below.

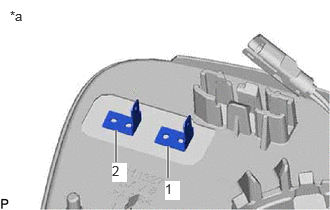

        GTY876493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror LH)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 25°C (77°F) 3.57 to 4.83 Ω

        If the result is not as specified, replace the outer mirror LH.

    2. Check the operation of the outer rear view mirror indicator. (for Type A with Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6.5 V.

      1. Connect 4 new 1.5 V dry-cell batteries in series.
      2. Apply 6 V battery voltage to the terminals of the connector, and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 1
        6 V battery negative (-) → Terminal 2        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror LH.

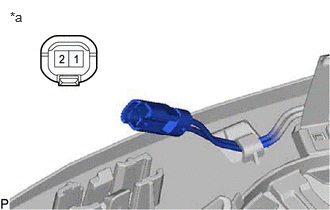

        GTY873699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror LH)
    3. Check the operation of the outer rear view mirror indicator. (for Type B with Blind Spot Monitor System)
      NOTE:

      Do not apply a voltage of more than 6.5 V.

      1. Connect 4 new 1.5 V dry-cell batteries in series.
      2. Apply 6 V battery voltage to the terminals of the connector, and check that the outer rear view mirror indicator comes on.

        OK

        Tester Connection Specified Condition
        6 V battery positive (+) → Terminal 1
        6 V battery negative (-) → Terminal 2        		 Outer rear view mirror indicator comes on

        If the result is not as specified, replace the outer mirror LH.

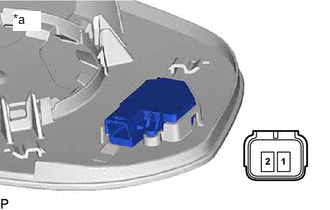

        GTY1113563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Outer Mirror LH)
