Inspection [12/2019 - ]: Procedure
- INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Seat Position Memory System)
- Check the mirror select switch and mirror surface adjust switch.
- Turn the mirror select switch to the L position.
- Measure the resistance according to the value(s) in the table below.

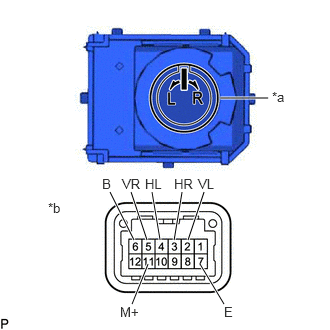

*a Mirror Select and Surface Adjust Switch *b Component without harness connected
(Outer Mirror Switch Assembly)Standard Resistance (for left side)
Tester Connection Condition Specified Condition 2 (VL) - 6 (B)
11 (M+) - 7 (E)Up Below 2 Ω Off 10 kΩ or higher 2 (VL) - 7 (E)
11 (M+) - 6 (B)Down Below 2 Ω Off 10 kΩ or higher 4 (HL) - 6 (B)
11 (M+) - 7 (E)Left Below 2 Ω Off 10 kΩ or higher 4 (HL) - 7 (E)
11 (M+) - 6 (B)Right Below 2 Ω Off 10 kΩ or higher - Turn the mirror select switch to the R position.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (for right side)
Tester Connection Condition Specified Condition 5 (VR) - 6 (B)
11 (M+) - 7 (E)Up Below 2 Ω Off 10 kΩ or higher 5 (VR) - 7 (E)
11 (M+) - 6 (B)Down Below 2 Ω Off 10 kΩ or higher 3 (HR) - 6 (B)
11 (M+) - 7 (E)Left Below 2 Ω Off 10 kΩ or higher 3 (HR) - 7 (E)
11 (M+) - 6 (B)Right Below 2 Ω Off 10 kΩ or higher If the result is not as specified, replace the outer mirror switch assembly.
- Check that the LED illuminates.
- Apply auxiliary battery voltage to the outer mirror switch assembly and check that the LED illuminates.

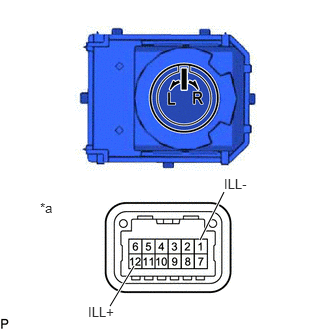

*a Component without harness connected
(Outer Mirror Switch Assembly)OK
Auxiliary Battery Connection Specified Condition Auxiliary battery positive (+) - 12 (ILL+)
Auxiliary battery negative (-) - 1 (ILL-)LED illuminates If the result is not as specified, replace the outer mirror switch assembly.
- Apply auxiliary battery voltage to the outer mirror switch assembly and check that the LED illuminates.
- Check the mirror select switch and mirror surface adjust switch.
- INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Seat Position Memory System)
- Check the mirror select switch and mirror surface adjust switch.
- Measure the resistance according to the value(s) in the table below.

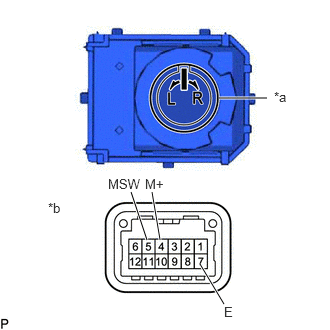

*a Mirror Select and Surface Adjust Switch *b Component without harness connected
(Outer Mirror Switch Assembly)Standard Resistance
Tester Connection Condition Specified Condition 4 (M+) - 7 (E) Mirror surface adjust switch pushed up 90 to 110 Ω Mirror surface adjust switch pushed right 225 to 275 Ω Mirror surface adjust switch pushed down 437 to 503 Ω Mirror surface adjust switch pushed left 744 to 856 Ω Mirror surface adjust switch not pushed 10 kΩ or higher 5 (MSW) - 7 (E) Mirror select switch turned to R position Below 10 Ω Mirror select switch turned to L position 90 to 110 Ω Mirror select switch off 10 kΩ or higher If the result is not as specified, replace the outer mirror switch assembly.
- Measure the resistance according to the value(s) in the table below.
- Check that the LED illuminates.
- Apply auxiliary battery voltage to the outer mirror switch assembly and check that the LED illuminates.
*a Component without harness connected
(Outer Mirror Switch Assembly)OK
Auxiliary Battery Connection Specified Condition Auxiliary battery positive (+) - 12 (ILL+)
Auxiliary battery negative (-) - 1 (ILL-)LED illuminates If the result is not as specified, replace the outer mirror switch assembly.
- Apply auxiliary battery voltage to the outer mirror switch assembly and check that the LED illuminates.
- Check the mirror select switch and mirror surface adjust switch.
