Removal [12/2019 - ]: Procedure

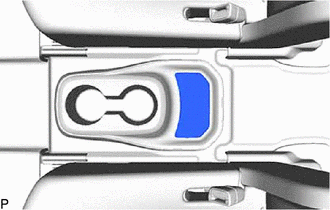

  1. REMOVE REAR SEAT UNDER TRAY
    1. Remove the rear seat under tray.
      GTY898196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

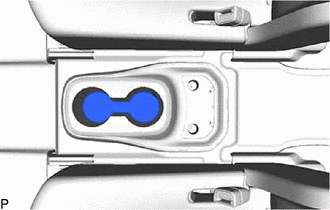

  2. REMOVE CUP HOLDER TRAY
    1. Remove the cup holder tray.
      GTY898195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

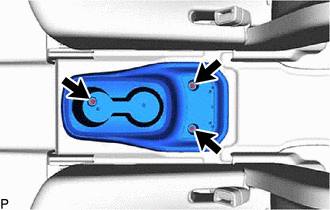

  3. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the 3 bolts and rear console box assembly.
      GTY898221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
