Components [12/2019 - 10/2022]

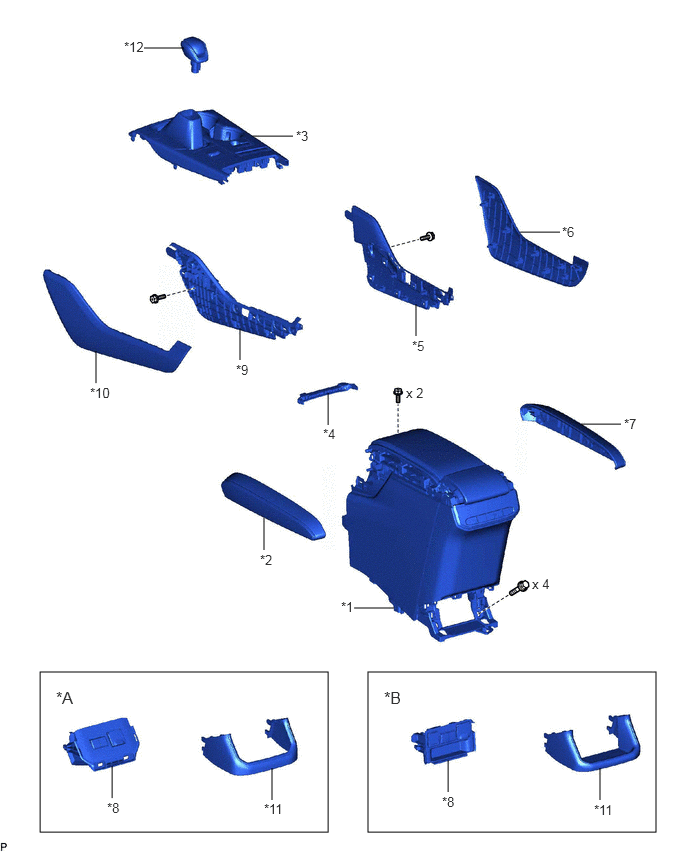

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Rear Seat Entertainment System | *B | w/ Rear Seat Entertainment System |
| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE BOX CUSHION |
| *3 | CONSOLE PANEL SUB-ASSEMBLY | *4 | FRONT CONSOLE BOX COVER |
| *5 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *6 | NO. 1 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY |
| *7 | NO. 2 CONSOLE BOX CUSHION | *8 | NO. 2 CONSOLE BOX HOLE COVER |
| *9 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *10 | NO. 2 LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY |
| *11 | REAR CONSOLE LOWER BOX | *12 | SHIFT LEVER KNOB SUB-ASSEMBLY |

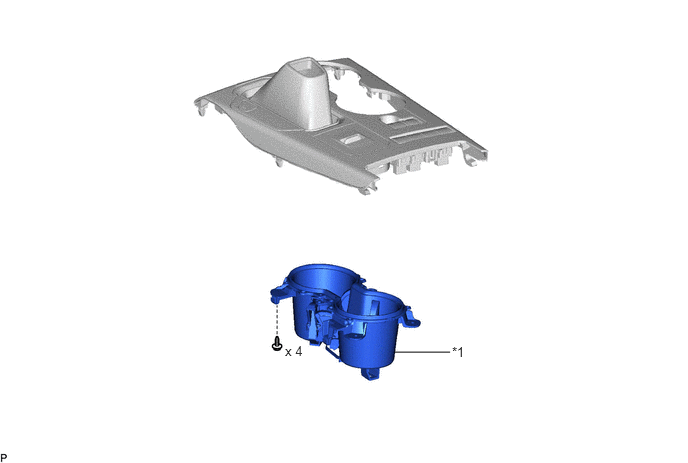

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONSOLE BOX CUP HOLDER | - | - |

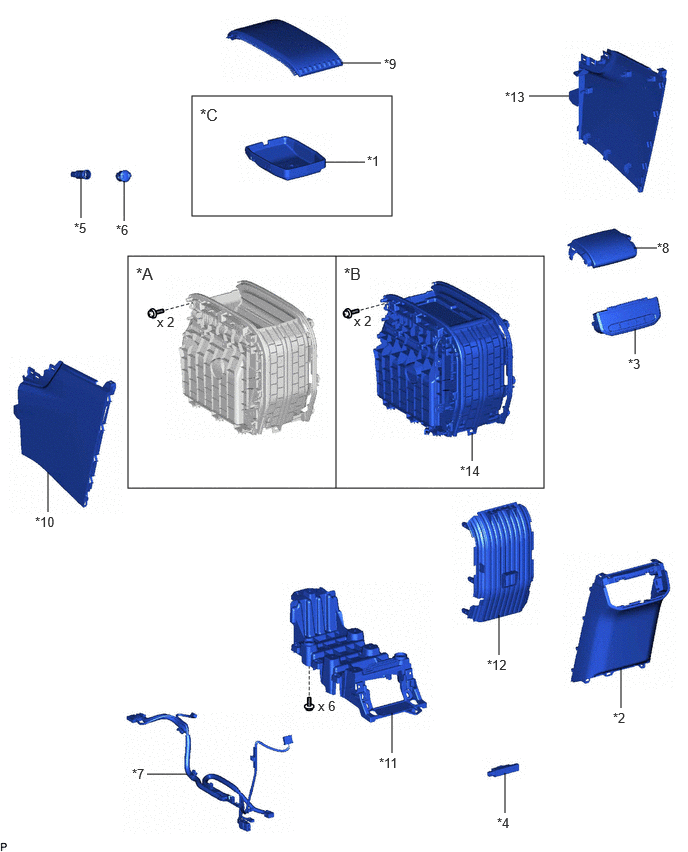

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Wireless Charger | *B | w/ Wireless Charger |
| *C | w/ Console Box Pocket | - | - |
| *1 | CONSOLE BOX POCKET | *2 | CONSOLE REAR END PANEL |
| *3 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *4 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY |
| *5 | NO. 2 POWER OUTLET SOCKET ASSEMBLY | *6 | NO. 2 POWER OUTLET SOCKET COVER |
| *7 | REAR CONSOLE BOX WIRE | *8 | REAR CONSOLE COVER |
| *9 | UPPER CONSOLE DOOR SUB-ASSEMBLY | *10 | NO. 1 BOX PANEL |
| *11 | NO. 1 TRASH BOX RETAINER SUPPORT | *12 | NO. 2 CONSOLE MOUNTING RETAINER |
| *13 | NO. 3 BOX PANEL | *14 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
